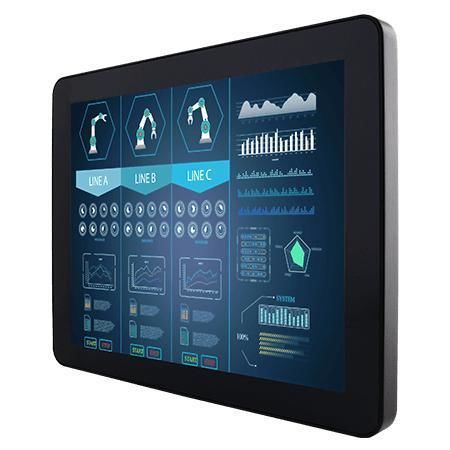

Projected capacitive touchscreen monitor R10L100-PCT2-POE

PCAP touchscreenmultitouch screenwith PCT touch screen

Overview
This 10.4-inch PoE chassis display R10L100-PCT2-POE is designed for industrial and commercial applications, offering projected capacitive multi-touch, front IP65 protection and Power-over-Ethernet support.

Key Features

• 10.4" 1024 x 768 resolution
• Projected Capacitive Multi-Touch (P-Cap)
• VGA input (default) and HDMI input (optional)
• USB port for touch
• Metal enclosure, VESA mount / panel mount
• Supports PoE — PD follows IEEE 802.3at (25 W) & IEEE 802.3af (15 W)
• Front IP65
• Fanless design

Functional highlights

• P-CAP multi-touch enables high-sensitivity input and multi-finger gestures (zoom, rotate, drag-and-drop) for intuitive operator interaction.
• Durability validated through manufacturing-level endurance tests to ensure reliable operation in industrial environments.
• Industrial-grade display module and controlled assembly ensure consistent image quality (350 nits, 1000:1 contrast, 16.2M colors).
• Customization options available: protection glass, panel brightness, surface treatment, ports and customer logo per integration requirements.

Certifications

• CE
• FCC

Display ports and customization
Standard I/O includes 1 x USB for touch, 1 x PoE for power input, 1 x VGA (default) and optional 1 x HDMI. Audio and other I/O options available on request. Power plug and cable options vary by region and can be adapted to project needs.

Technical specifications

• Display Size: 10.4 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Protection Glass (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• LAN: 1 x PoE for Power Input
• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: 1 x Speaker (Optional)
• Dimension: 252.41 x 197.8 x 43.8 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory: 1 x USB Cable for Touch; 1 x VGA Cable; 1 x HDMI Cable
• Power (PoE): Power Device (PD) follows IEEE 802.3at (25 W), IEEE 802.3af (15 W)
• Control / Button: 5 Keys: -, +, Power, Esc, Enter
