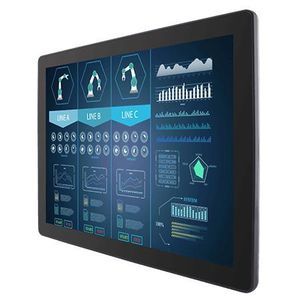

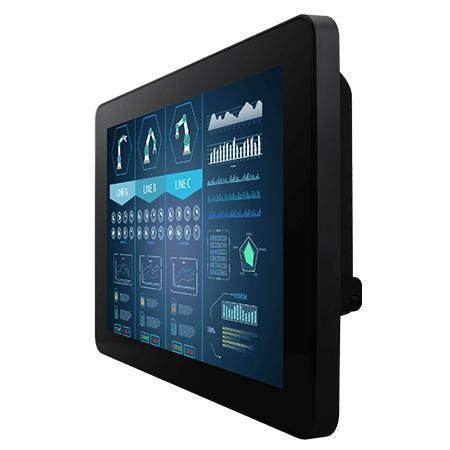

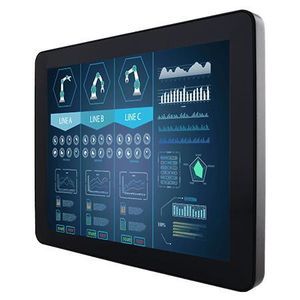

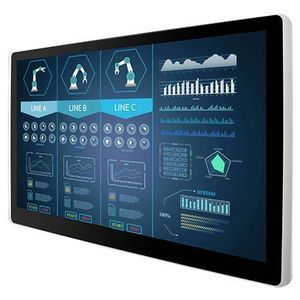

LCD monitor W10L100-PCH2-POE

projected capacitive touchscreenmultitouch screenindustrial

Overview
The W10L100-PCH2-POE is a 10.1 inches PoE chassis display for industrial and commercial touch applications. It integrates a projected capacitive (P-Cap) multi-touch panel, PoE power input, USB touch interface and a front protection rating of IP65. The display is designed for reliable operation with options for display ports, brightness, glass treatments and product size customization.

Key Features

• 10.1 in 1280 x 800 PoE chassis display
• Projected Capacitive Multi-Touch (P-Cap)
• VGA input (default) and HDMI input (optional)
• USB port for touch
• Supports Power over Ethernet (PoE)
• Front protection: IP65

Certifications

• CE
• FCC

Product Highlights

• High-sensitivity P-Cap multi-touch for smooth multi-finger gestures
• Manufacturing durability tests ensure compliance with industrial standards
• Carefully assembled display modules for consistent image quality
• Customization options: size, customer logo, LCD brightness, glass surface treatment, display ports

Technical specifications

• Model: W10L100-PCH2-POE
• Display size: 10.1 inches
• Resolution: 1280 x 800
• Touch / Glass: Projected Capacitive Multi Touch Screen (default); Protection Glass (optional); Anti-glare Coating (optional)
• Panel brightness: 350 nits
• Contrast ratio: 800:1
• Viewing angles: 85/85/85/85
• Display colors: 16.7M Colors
• Operating humidity: 10% to 90% (non-condensing)
• Operating temperature: 0 ~ 50°C
• Storage temperature: -10 ~ 60°C
• Certifications: CE, FCC
• USB port: 1 x USB for touch
• LAN / Power: 1 x PoE for power input (PD follows IEEE 802.3at 25 W, IEEE 802.3af 15 W)
• Video: 1 x VGA (default); 1 x HDMI (optional)
• Audio: 1 x speaker (optional)
• Dimensions: 264.57 x 173.29 x 35.7 mm
• Mounting: VESA mount / panel mount
• Enclosure: Aluminum
• Cooling system: Fanless design
• Accessories: 1 x USB cable for touch; 1 x VGA cable; 1 x HDMI cable
• Control: 5 keys: -, +, Power, Esc, Enter
