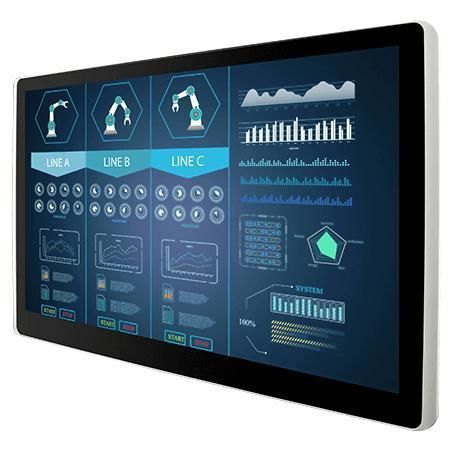

Touch screen monitor W15L100-PTA3-POE

projected capacitive touchscreenmultitouch screenindustrial

Overview
Winmate 15.6-inch PoE chassis display W15L100-PTA3-POE designed for industrial and commercial applications. The product integrates Power over Ethernet (PoE) to deliver both power and data through a single Ethernet cable, enabling flexible placement and simplified installation. It features a projected capacitive multi-touch screen (P-CAP) for highly sensitive multi-touch input, a robust chassis with front IP65 protection, and support for VGA and HDMI video inputs.

Key Features

• 15.6” 1920 x 1080 resolution
• VGA input and HDMI input (optional)
• Projected Capacitive Multi-Touch (P-CAP)
• Supports Power over Ethernet (PoE) IEEE 802.3at/802.3af
• Front IP65 protection
• Fanless industrial chassis with VESA mount

Highlights

• Projected Capacitive Multi-Touch: Highly sensitive touch with multi-touch gestures such as pinch-to-zoom, rotate and drag-and-drop.
• Industrial durability: Designed and tested for reliable operation in demanding environments.
• Outstanding image quality: Full HD panel, 400 nits brightness and wide viewing angles for clear monitoring and control visuals.
• Customization and connectivity: Configurable options for panel brightness, glass surface treatment, display ports and regional power connector styles.

Certifications

• CE
• FCC

Technical specifications

• Model: W15L100-PTA3-POE
• Display size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Touch / Glass: Projected Capacitive Multi-Touch (default); Protection Glass (optional)
• Panel Brightness: 400 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 262K Colors
• Active Area: 344.16 × 193.59 mm
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -10 ~ 60 °C
• USB Port: 1 × USB for touch
• LAN / Power: 1 × PoE for power input (PD follows IEEE 802.3at 25 W, IEEE 802.3af 15 W)
• Video: 1 × VGA (default); 1 × HDMI (optional)
• Audio: 2 × Speaker (optional)
• Dimensions: 387.8 × 232.9 × 40 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling System: Fanless design
• Accessories: 1 × USB cable for touch, 1 × VGA cable, 1 × HDMI cable
• Controls: 7 keys — Enter, Exit, Right, Left, Up, Down, Power
