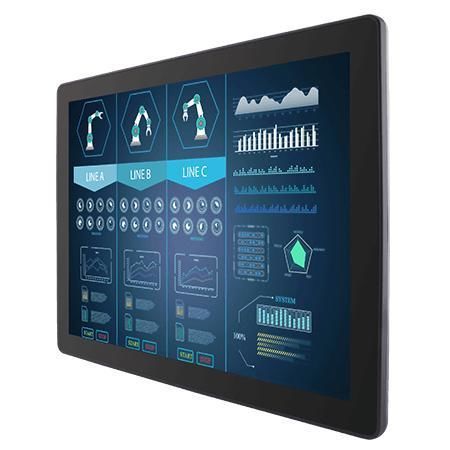

Projected capacitive touchscreen monitor R15L100-PTC3-POE

multitouch screenindustrial15"

Overview
15-inch PoE chassis touch display R15L100-PTC3-POE designed for industrial and commercial applications. Projected capacitive (P-CAP) multi-touch supports multi-finger gestures. Front panel protection to IP65 and Power over Ethernet (PoE) input for simplified installation. Industrial-grade display modules assembled in controlled conditions with options for port and surface customization.

Key features

• 15” display, 1024 x 768 resolution
• Projected Capacitive (P-CAP) multi-touch
• Front side strengthened/protection glass (optional)
• VGA input (default) and HDMI input (optional)
• Supports Power over Ethernet (PoE) — PD IEEE 802.3at / 802.3af
• Front IP65 protection
• Fanless design and VESA mountable

Certifications

• CE
• FCC

Technical specifications

• Size: 15 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Protection Glass (Optional); Anti-glare Coating (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 80, 80, 70, 80
• Display Color: 16.2M Colors
• Active Area: 304.128 x 228.096 mm
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• LAN: 1 x PoE for Power Input (PD follows IEEE 802.3at 25 W / IEEE 802.3af 15 W)
• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: 2 x Speaker (Optional)
• Dimension: 352.5 x 276.7 x 45 mm
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless Design
• Accessory: 1 x USB Cable for Touch; 1 x VGA Cable; 1 x HDMI Cable
• Control / Buttons: 7 Keys — Enter, Exit, Right, Left, Up, Down, Power
