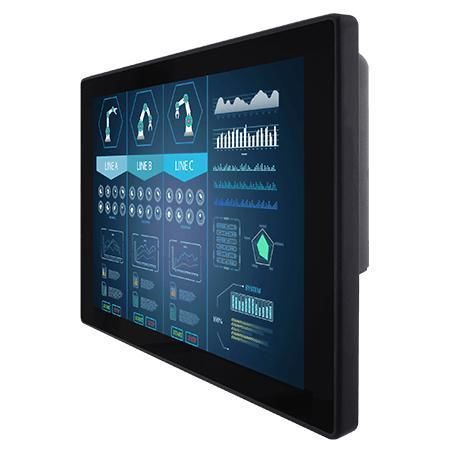

LCD monitor R12L100-PCM2-POE

projected capacitive touchscreenmultitouch screenindustrial

Product
12.1-inch PoE chassis display R12L100-PCM2-POE for industrial and commercial applications. Projected capacitive multi-touch, front IP65 protection and Power over Ethernet support.

Key Features

• 12.1” 1024 x 768 resolution
• Projected Capacitive Multi-Touch (P-Cap)
• VGA input (default) and HDMI input (optional)
• USB port for touch connectivity
• Metal enclosure with compact chassis design
• Supports PoE (PD)
• Front protection rating IP65

Certifications

• CE
• FCC

Overview
Projected Capacitive Multi-Touch (P-CAP)
High-sensitivity capacitive touch with multi-touch gestures enables data entry, image rotation, drag-and-drop and pinch-to-zoom using two or more fingers.

Maximum Durability
Winmate conducts durability testing during production to ensure compliance with industrial standards and reliable operation in the intended environmental conditions.

Outstanding Image Quality
Industrial-grade display modules are assembled under controlled conditions to provide consistent image performance and easy integration in professional installations.

Display Ports and Customization
A range of customization options is available including display ports, LCD brightness, glass surface treatment, panel size, customer logo and region-specific power plug selection to meet project requirements.

Technical specifications

• Display size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Protection Glass (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 700:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.2M Colors
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• LAN: 1 x PoE for Power Input
• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: 2 x Speaker (Optional)
• Dimension: 296.2 x 226.7 x 45.5 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessories: 1 x USB Cable for Touch; 1 x VGA Cable; 1 x HDMI Cable
• Power (PoE): Power Device (PD) follows IEEE 802.3at (25 W), IEEE 802.3af (15 W)
• Control: 5 Keys: -, +, Power, Esc, Enter
