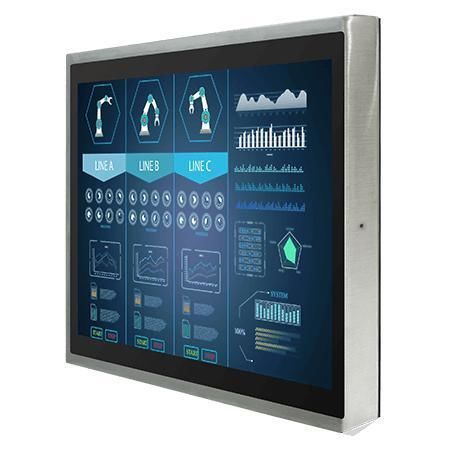

PCAP capacitive touch screen monitor R19L100-SPM169

multitouch screenprojected capacitive touchscreenfor HMI interface

Product overview
The R19L100-SPM169 is a 19" IP69K stainless steel PCAP chassis display engineered for hygienic, washdown environments in food processing, beverage and chemical industries. It combines a flat projected-capacitive multi-touch interface with a fully sealed SUS316 housing for high-resistance cleaning procedures.

Key features

• 19" 1280 x 1024 projected capacitive (PCAP) multi-touch with flat front
• IP69K waterproof and dustproof stainless steel enclosure (SUS316 / AISI316)
• VESA and YOKE mounting options
• Optional optical bonding and customizable panel brightness
• Fanless design for washdown suitability

Certifications

• IP69K
• FCC
• CE

Applications

• HMI panels and operator stations in food & beverage processing
• Control panels in chemical plants and corrosive environments
• Washdown production lines requiring sanitary-compliant interfaces

Display and touch
The projected-capacitive touch provides high sensitivity and multi-finger gesture support (tap, pinch-zoom, rotate, drag). The 1280 x 1024 resolution, 250 nits brightness and wide viewing angles deliver consistent visual feedback in industrial settings.

Customization & I/O

• Custom options: customer logo, glass surface treatment, panel brightness, display ports and regional power plugs
• I/O: M12 waterproof connector for USB touch control; M12 VGA input (default); optional waterproof DVI and HDMI connectors

Included / Optional accessories

• Included: 100~240V AC to DC adapter with waterproof connector; power cord; external USB (waterproof) cable; external VGA (waterproof) cable; waterproof caps; manual; VESA screws
• Optional: external HDMI cable (waterproof); external DVI cable (waterproof); YOKE mount kit (YMK-19P)

IO & control

• USB: 1 x M12 waterproof connector for touch control
• Video: 1 x M12 VGA (default); optional waterproof DVI/HDMI connectors
• Indicators: LED for power; LED for status
• Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)

Technical specifications

• Display — Size: 19"
• Display — Resolution: 1280 x 1024
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Panel Brightness: 250 nits
• Display — Contrast Ratio: 1000:1
• Display — View Angles: 85,85,80,80
• Display — Active Area: 376.32 x 301.06 mm
• Mechanical — Dimension: 468 x 395 x 57 mm
• Mechanical — Enclosure: Stainless Housing (SUS316 / AISI316)
• Mechanical — Mounting: VESA Mount; Yoke Mount
• Cooling — Fanless design
• Environment — Operating Temp: 0°C to 45°C; Storage Temp: -20°C to 60°C; Operating Humidity: 10%–90% RH non-condensing
• IP rating: IP69K
• Power — Rating: 12V DC (M12 type)

Note
Optical bonding and certain video input connectors are optional depending on configuration choices.
