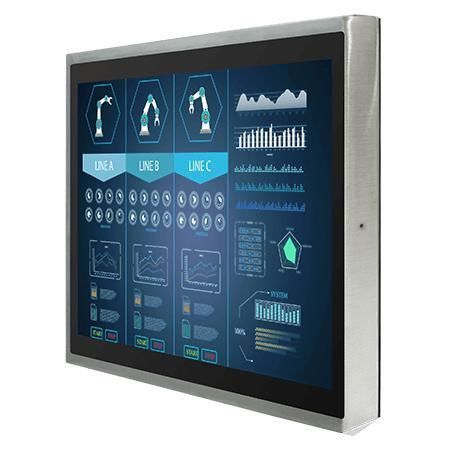

Touch screen monitor R10L100-SPT269

multitouch screenprojected capacitive touchscreenPCAP touchscreen

Overview
The R10L100-SPT269 is a 10.4-inch IP69K stainless steel projected‑capacitive (PCAP) chassis display engineered for hygienic and harsh industrial environments such as food processing, beverage and chemical plants. It integrates a SUS 316 / AISI 316 enclosure, full IP69K protection, PCAP multi‑touch and optional optical bonding. Supports VESA and YOKE mounting and operates fanless for reliable use in washdown areas.

Key features

• 10.4-inch display, 1024 × 768 resolution, projected capacitive (PCAP) multi‑touch with flat bezel
• Full IP69K waterproof and dustproof enclosure for high‑pressure washdown
• SUS 316 / AISI 316 stainless steel housing suitable for food, beverage and chemical environments
• VESA and YOKE mounting options for panel or arm installations
• Optional optical bonding and M12 waterproof connectors for I/O

Certifications

• IP69K
• FCC
• CE

Applications
Designed for HMI and operator panel use in hygienic production lines, washdown zones, chemical processing areas and other industrial environments requiring corrosion resistance and high‑pressure cleaning compliance.

Accessories / Packaging

• Included: 100–240V AC to DC adapter with waterproof connector; power cord; external USB and VGA cables with waterproof connectors; waterproof caps; manual; VESA screws
• Optional: external HDMI and DVI cables with waterproof connectors

Technical specifications

• Model: R10L100-SPT269
• Display size: 10.4 inches — Resolution: 1024 × 768 — Panel brightness: 350 nits — Contrast ratio: 1000:1
• Active area: 210.4 × 157.8 mm — Colors: 16.2M
• Dimensions (W × H × D): 289 × 246 × 49.9 mm — Weight: 3.8 kg
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Enclosure: Stainless housing (SUS 316 / AISI 316) — Cooling: Fanless design
• Mounting: VESA mount; Yoke mount
• Operating temperature: 0°C to 45°C — Storage: -20°C to 60°C — Operating humidity: 10% to 90% RH, non‑condensing
• IO: 1 × M12 waterproof USB connector for touch control; 1 × M12 VGA input (default); optional waterproof DVI/HDMI inputs
• Indicators & controls: LED power/status; buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Power rating: 12V DC (M12 type)
