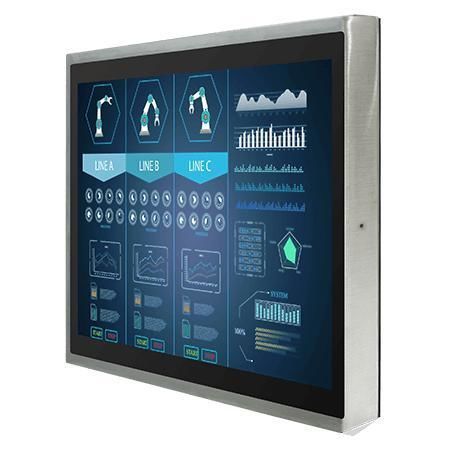

PCAP touchscreen panel PC R15L100-SPC369

touch screenmultitouch screen15"

Overview
The R15L100-SPC369 is a 15" IP69K stainless PCAP chassis display designed for demanding hygiene-critical environments such as food processing, beverage and chemical industries. It features a projected capacitive multi-touch screen with flat design and full IP69K waterproof enclosure built from SUS 316 / AISI 316 stainless steel. The product supports VESA and yoke mounting and offers optional optical bonding for enhanced durability and optical performance.

Key Features

• 15" display, 1024 x 768 resolution, PCAP touch with flat design
• Full IP69K waterproof enclosure
• SUS 316 / AISI 316 stainless steel housing for food and chemical industry use
• Support for VESA mount and YOKE mount
• Optional optical bonding

Certifications

• IP69K
• FCC
• CE

Product Highlights

• Waterproof All-Around: Fully complies with IP69K water and dust resistance to survive stringent cleanup processes and strict hygiene demands.
• Comprehensive Stainless Solution: Stainless HMI and display solution tailored for automation processes in Food & Beverage and chemical factory applications.
• Projected Capacitive Multi-Touch (P-CAP): Highly-sensitive multi-touch support enabling gestures such as pinch-to-zoom, rotate and multi-finger drag/drop.
• Outstanding Image Quality: Industrial-grade display modules assembled in clean-room conditions to offer vibrant and reliable image quality.
• Display Ports and Customization: Wide range of customization options including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports and power plug variations according to regional requirements.

Accessories & Options

• Standard accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector for touchscreen control; external VGA cable with waterproof connector; waterproof caps; manual; VESA screws.
• Optional accessories: External HDMI cable with waterproof connector (optional); external DVI cable with waterproof connector (optional).
• Optional accessory example listed: YOKE Mount kit_P1 (Model Name: YMK-15P, Part Number: 98K015A0000K).

Caractéristiques / spécifications techniques

• Display Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 300.0 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Dimension: 378 x 301 x 56.4 mm
• Weight: 6.3 Kg
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K
• Certification: CE, FCC
• IO Ports: USB Port: 1 x M12 waterproof connector for touch screen control
• Video: 1 x M12 type connector for VGA input (default); 1 x waterproof connector for DVI input (optional); 1 x waterproof connector for HDMI input (optional)
• Indicator: 1 x LED indicator for power; 1 x LED indicator for status
• Control Buttons: 1 x Power button; 1 x Adjust up button; 1 x Adjust down button; 1 x ESC (Auto) button; 1 x OK (Menu) button
• Power Rating: 12V DC (M12 type)
