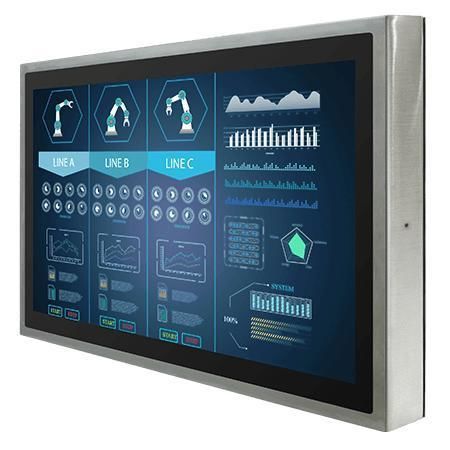

Projected capacitive touchscreen display W22L100-SPA369

multitouch screenPCAP touchscreencolor

Overview
The W22L100-SPA369 is a 21.5-inch IP69K stainless steel chassis projected capacitive (P-CAP) display engineered for washdown and hygienic environments in food processing, beverage, pharmaceutical and chemical industries.

Key features

• 21.5 inches, 1920 x 1080, flat-front P-CAP multi-touch
• Full IP69K waterproof enclosure
• Stainless housing SUS 316 / AISI 316
• VESA and YOKE mounting support
• Optical bonding (optional) and multiple customization options

Certifications

• IP69K
• FCC
• CE

Waterproof all-around
The enclosure meets IP69K for protection against high-pressure, high-temperature washdowns and heavy cleaning procedures required in sanitary industrial environments.

Comprehensive stainless solution
Stainless steel construction (SUS 316) and hygienic design make this display suitable for HMIs and control panels in corrosive or sanitation-critical production lines.

Projected capacitive multi-touch (P-CAP)
High-sensitivity multi-touch supports gestures (rotate, drag, pinch/zoom) enabling efficient operator interaction in industrial HMI workflows.

Outstanding image performance
Industrial-grade display modules assembled under controlled conditions deliver stable color and clarity for monitoring and control tasks.

Display ports and customization
Multiple waterproof connector options for video and touch (default VGA via M12; optional HDMI/DVI). Customizable: product size, customer logo, panel brightness, glass surface treatment, display ports and regional power plug.

Technical specifications

• Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Dimensions: 541 x 337 x 56.2 mm
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP69K
• Certification: CE, FCC
• USB Port: 1 x M12 waterproof connector for touch control
• Video: 1 x M12 type connector for VGA (Default); 1 x waterproof connector for DVI (Optional); 1 x waterproof connector for HDMI (Optional)
• Indicator: 1 x LED power; 1 x LED status
• Buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessories included: 100~240V AC to DC adapter with waterproof connector; power cord; external M12 USB cable; external M12 VGA cable; waterproof caps; manual; VESA screws
• Optional accessories: External HDMI/DVI cables with waterproof connectors
• Power Rating: 12V DC (M12 type)
