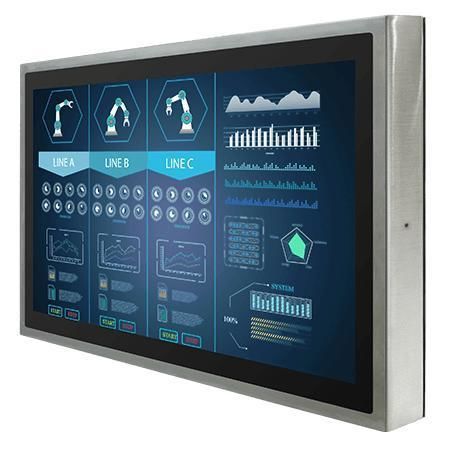

Multitouch screen panel PC W24L100-SPA269

touch screenPCAP capacitive touch screen24"

Overview
The W24L100-SPA269 is a 24" IP69K stainless-steel PCAP chassis display engineered for hygienic and washdown environments in food processing, beverage and chemical plants. It integrates a SUS 316 / AISI 316 enclosure, a flat projected capacitive multi-touch panel and a fully sealed IP69K-rated housing. Mounting options include VESA (default) and YOKE (optional). Optical bonding is available as an option.

Key features

• 24", 1920 x 1080 resolution, projected capacitive (P-CAP) multi-touch with flat surface
• Full IP69K waterproof and dustproof enclosure
• SUS 316 / AISI 316 stainless-steel housing for hygienic and corrosion-resistant installations
• VESA mount standard; YOKE mount optional
• Optical bonding available (optional)

Certifications

• IP69K
• FCC
• CE

Applications
Designed for HMI tasks in harsh hygiene-controlled environments such as food and beverage production lines, pharmaceutical and chemical processing areas, where frequent high-pressure/high-temperature washdowns and strict sanitation standards apply.

Customization & connectivity
The product supports customer-specific options including panel brightness, glass surface treatment, custom logos, and display port configurations. Standard I/O uses M12 waterproof connectors: USB (touch control), M12 VGA (default) and optional waterproof connectors for DVI/HDMI. Power input: 12V DC (M12 type).

Accessories & options

• Included: 100~240V AC to DC adapter with waterproof connector, power cord, external USB cable (waterproof) for touch control, external VGA cable (waterproof), waterproof caps, manual, VESA screws
• Optional: external HDMI cable (waterproof), external DVI cable (waterproof), YOKE mounting kit (YMK-24P)

Technical specifications

• Display — Size: 24.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1920 x 1080
• Display — Panel Brightness: 250 nits
• Display — Contrast Ratio: 3000:1
• Display — View Angles: 89, 89, 89, 89
• Display — Display Color: 16.7M Colors
• Display — Active Area: 527.04 x 296.46 mm
• Mechanical — Dimension: 620 x 390 x 56 mm
• Mechanical — Weight: 12 Kg
• Mechanical — Mounting: VESA mount (Default); Yoke mount (Optional)
• Mechanical — Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Mechanical — Cooling System: Fanless Design
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment — Operating Temperature: 0°C to 45°C
• Environment — Storage Temperature: -20°C to 60°C
• Environment — IP rating: IP69K
• Certification — CE, FCC
• IO Ports — USB Port: 1 x M12 waterproof connector for touch screen control
• IO Ports — Video: 1 x M12 type connector for VGA input (Default); 1 x waterproof connector for DVI input (Optional); 1 x waterproof connector for HDMI input (Optional)
• IO Ports — Indicator: 1 x LED Indicator for power; 1 x LED Indicator for status
• Control — Buttons: 1 x Power Button; 1 x Adjust up button; 1 x Adjust down button; 1 x ESC (Auto) button; 1 x OK (Menu) button
• Accessory — Standard: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB cable with waterproof connector for touchscreen control; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Accessory — Optional: External HDMI cable with waterproof connector; External DVI cable with waterproof connector
• Power — Power Rating: 12V DC (M12 type)
