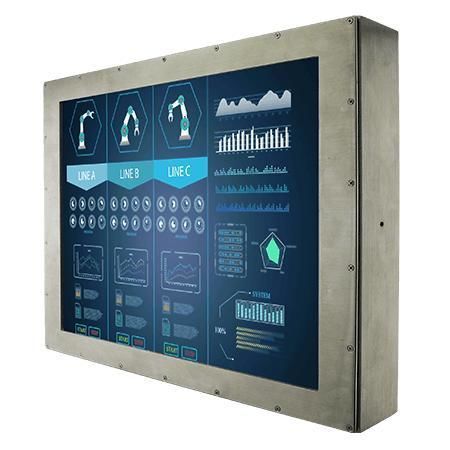

LCD monitor R17L100-67M1ST

resistive touch screenindustrialfor displays

Overview
The R17L100-67M1ST is a 17-inch resistive chassis display built for industrial environments requiring strict hygiene and robust protection. The unit features a stainless steel chassis (SUS 316 / AISI 316), full IP67 water and dust protection, fanless cooling and support for VESA and yoke mounting. The resistive touch option is suitable for low temperatures, wet fingers and dusty conditions; protection glass (no-touch) is available as an option. Fully sealed connectors and cable protection allow reliable installation in demanding sites. Display modules are assembled in clean-room conditions and a range of customization options is offered to match application requirements.

Key features

• 17-inch display, 1280 x 1024 resolution
• Support for VESA and Yoke mounting
• Stainless steel chassis (SUS 316 / AISI 316)
• Full IP67 waterproof and dustproof protection
• Resistive touch screen (default); optional protection glass without touch
• Fanless design and sealed M12 connectors
• Clean-room assembly and customizable options

Certifications

• IP67
• CE
• FCC

Technical specifications

• Display Size: 17 inches
• Touch / Glass: Resistive Touch Screen bonding with panel (Default); Protection Glass without touch function (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 85° / 85° / 80° / 80°
• Display Color: 16.2M Colors
• Active Area: 337.920 x 270.336 mm
• Dimensions (W×H×D): 418 x 350 x 59 mm
• Mounting: VESA mount; Yoke mount
• Enclosure Material: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP67
• Certifications: CE, FCC
• USB Port: 1x M12 waterproof connector for touch control (Optional)
• Serial Port: 1x M12 waterproof connector for touch control (Optional)
• Video Inputs: 1x M12 connector for VGA input (Default); 1x waterproof DVI input (Optional); 1x waterproof HDMI input (Optional)
• Indicators: 1x LED for power; 1x LED for status
• Power Input: 1x M12 waterproof connector for 12V DC
• Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Included Accessories: 100~240V AC-to-DC adapter with waterproof connector; power cord; external VGA cable with waterproof connector; external USB or RS232 cable with waterproof connector for touchscreen control; waterproof caps; manual; VESA screws
• Optional Accessories: Yoke mount stand; external HDMI cable with waterproof connector; external DVI cable with waterproof connector; external USB or RS232 cables with waterproof connectors for touchscreen control
• Power Rating: 12V DC (M12 type)
