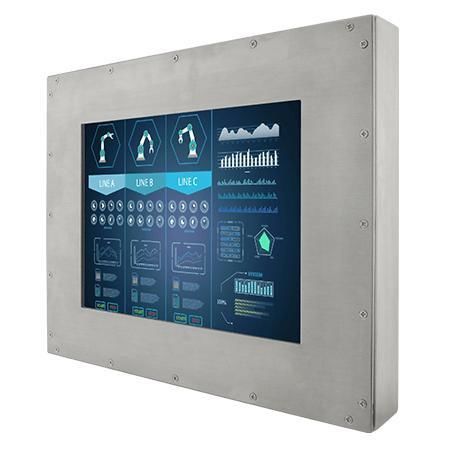

Resistive touch screen monitor R10L100-67T2ST

for industrial machinesfor chemical applicationsfor food production line

Overview
The R10L100-67T2ST is a 10.4" IP67 stainless steel resistive chassis display designed for hygienic and harsh industrial environments such as food processing, beverage and chemical industries. It features a SUS 316 / AISI 316 enclosure, full IP67 protection against water and dust, a resistive touch screen (optional protection glass), fully sealed connectors, fanless cooling and multiple mounting options (VESA and yoke). The product supports customization for panel brightness, glass surface treatment, display ports and enclosure options to suit industrial integration requirements.

Key Features

• 10.4", 1024 x 768 resolution
• Resistive touchscreen (default) — protection glass optional
• SUS 316 / AISI 316 stainless steel housing
• Full IP67 waterproof and dustproof
• VESA and Yoke mounting options; chassis design; fanless cooling

Certifications

• IP67
• FCC
• CE

Technical specifications

• Display — Size: 10.4 inches; Touch / Glass: Resistive Touch Screen bonding with panel (default), Protection glass without touch function (optional); Resolution: 1024 x 768; Panel Brightness: 350 nits; Contrast Ratio: 1000:1; View Angles: 88/88/88/88; Display Color: 16.2M Colors; Active Area: 210.4 x 157.8 mm
• Mechanical — Dimension: 311 x 257 x 47.4 mm; Mounting: VESA mount and Yoke mount; Enclosure: Stainless housing (SUS 316 / AISI 316); Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing; Operating Temperature: 0°C to 45°C; Storage Temperature: -20°C to 60°C; IP rating: IP67
• Certification — CE, FCC
• IO Ports — USB: 1x M12 waterproof connector for touch control (optional); Serial: 1x M12 waterproof connector for touch control (optional); Video: 1x M12 type connector for VGA input (default), 1x waterproof DVI input (optional), 1x waterproof HDMI input (optional); Indicators: Power LED, Status LED; Power Input: 1x M12 waterproof connector for 12V DC
• Control — Buttons: 1x Power; 1x Adjust up; 1x Adjust down; 1x ESC (Auto); 1x OK (Menu)
• Accessory (included) — 100~240V AC to DC adapter with waterproof connector; power cord; external VGA cable with waterproof connector; external USB or RS232 cable with waterproof connector for touch control; waterproof caps; manual; VESA screws
• Optional Accessory — Yoke mount stand; external HDMI cable with waterproof connector; external DVI cable with waterproof connector; external USB/RS232 cables with waterproof connectors for touch control
• Power — Power Rating: 12V DC (M12 type)
