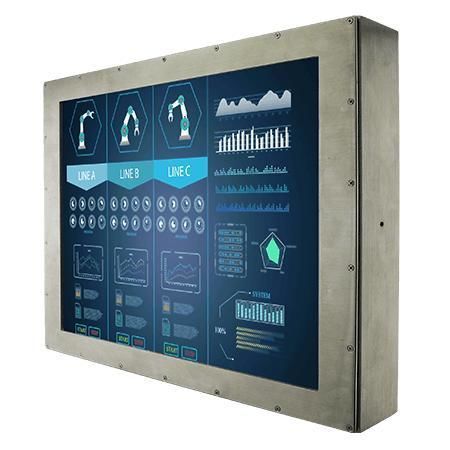

LCD monitor R19L300-67M1ST

resistive touch screenindustrialfor chemical applications

Overview
The R19L300-67M1ST is a 19-inch IP67 stainless resistive chassis display designed for harsh industrial environments such as food processing, beverage and chemical industries. It features a stainless SUS 316 / AISI 316 housing, full IP67 waterproof and dustproof protection, and a resistive touch option with optional protection glass for scratch resistance.

Key Features

• 19" , 1280 x 1024 resolution
• Support for VESA and Yoke mounting
• Chassis display design
• Stainless housing (SUS 316 / AISI 316)
• Full IP67 waterproof and dustproof

Functional Highlights

• Waterproof all-around: IP67 rating for resistance to water and dust during cleaning and washdown processes
• Resistive touch / optional protection glass: resistive touch bonding is standard; protection glass (no touch) is available to protect the surface from sharp objects
• Sealed connectors and cable protection: M12-style waterproof connectors and sealed cable routing for reliable installations
• Industrial display module: modules assembled under clean-room conditions for consistent image performance
• Display ports & customization: configurable ports (VGA/DVI/HDMI), brightness, glass surface treatment and waterproof connector options

Certifications

• IP67
• CE
• FCC

Technical specifications

• Display Size: 19 inches
• Touch / Glass: Resistive touch screen bonding (default); protection glass without touch (optional)
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Display Color: 16.7M colors
• Active Area: 376.32 x 301.06 mm
• Dimensions: 457.4 x 369.5 x 62.7 mm
• Mounting: VESA mount; Yoke mount
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP67
• IO Ports: VGA (M12 default); optional waterproof DVI/HDMI; optional M12 USB/RS232 for touch
• Power Input: 1 x M12 waterproof connector for 12V DC
• Controls: 1 x Power; 1 x Adjust up; 1 x Adjust down; 1 x ESC (Auto); 1 x OK (Menu)
• Standard Accessories: 100~240V AC-DC adapter with waterproof connector; power cord; waterproof VGA cable; waterproof USB/RS232 cable; waterproof caps; manual; VESA screws
• Optional Accessories: Yoke mount stand; external waterproof HDMI/DVI/USB/RS232 cables
• Power Rating: 12V DC (M12)
