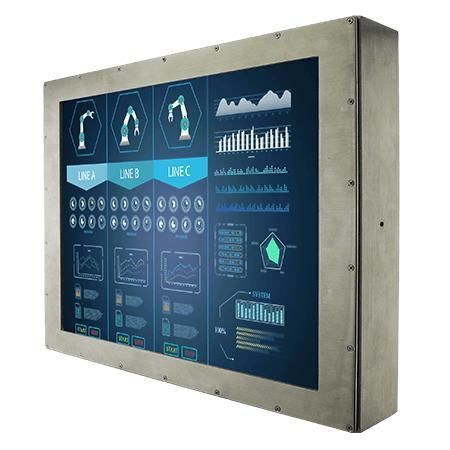

LCD monitor R15L600-67C3ST

resistive touch screenwith touchscreenindustrial

Overview
The R15L600-67C3ST is a 15-inch IP67 stainless steel resistive chassis display engineered for industrial and hygienic applications such as food processing, beverage, pharmaceutical and chemical production. It features an SUS316 enclosure, full IP67 waterproof/dustproof rating and supports VESA and yoke mounting options.

Key features

• 15-inch display, 1024 x 768 resolution
• Resistive touch screen (default); optional protection glass (non-touch)
• SUS316 / AISI 316 stainless steel chassis
• Full IP67 front and enclosure sealing
• VESA and Yoke mounting support; fanless design

Certifications

• IP67
• CE
• FCC

Product details
The unit meets IP67 requirements for water and dust resistance to withstand washdown and stringent hygiene procedures common in food, beverage and pharmaceutical environments.

The standard touch interface is a resistive touch screen bonded to the panel to support glove operation and wet conditions. An optional protection glass (without touch function) is available to shield the display from sharp objects and surface scratches while maintaining visibility.

Sealed M12 connectors and waterproof cable protections are provided for video, touch control and power to ensure reliable operation in demanding industrial settings. The fanless, stainless enclosure reduces contamination risk and simplifies cleaning.

The display module is assembled under controlled conditions to deliver consistent image performance. A range of customization options is offered including panel brightness, glass surface treatment, display input types and regional power connector variants.

Accessories (standard and included)

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External VGA cable with waterproof connector
• External USB or RS232 cable with waterproof connector for touchscreen control
• Waterproof caps
• Manual
• VESA screws

Optional Accessories

• Yoke mount stand
• External HDMI cable with waterproof connector
• External DVI cable with waterproof connector
• External USB cable with waterproof connector for touchscreen control
• External RS232 cable with waterproof connector for touchscreen control

Technical specifications

• Model: R15L600-67C3ST
• Size: 15 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen bonding with panel (default); Protection glass without touch function (optional)
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• Viewing Angles: 88/88/88/88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Dimensions: 383 x 310 x 57 mm
• Mounting: VESA Mount; Yoke Mount
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP67
• Certifications: CE, FCC
• USB Port: 1x M12 waterproof connector for touch screen control (optional)
• Serial Port: 1x M12 waterproof connector for touch screen control (optional)
• Video: 1x M12 type connector for VGA input (default); 1x waterproof DVI input (optional); 1x waterproof HDMI input (optional)
• Indicators: 1 x LED indicator for power; 1 x LED indicator for status
• Power Input: 1 x M12 waterproof connector for 12V DC
• Control Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Power Rating: 12V DC (M12 type)
