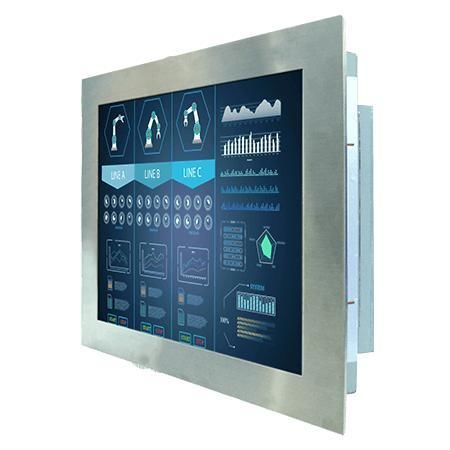

LCD monitor R15L100-STC3

resistive touch screenfor industrial machinesfor hygienic applications

Overview
The R15L100-STC3 is a 15" stainless steel panel-mount display for hygienic and industrial environments such as food processing, beverage and chemical industries. It is available with optional resistive touch or protection glass, features front IP65 ingress protection, multiple video inputs and a fanless stainless enclosure with panel and VESA mounting options.

Key Features

• 15" diagonal display, 1024 x 768 resolution
• VGA (standard) and HDMI (optional) inputs
• Panel-mount and VESA-mount options
• Front IP65 for dust and water resistance

Certifications

• CE
• FCC

Resistive Touch / Protection Glass
The display supports an optional resistive touch screen or an optional protection glass without touch functionality. The protection glass improves resistance to cold temperatures, wet fingers and dusty conditions and protects the panel from sharp foreign objects while remaining operable despite surface scratches.

Dust and Water Resistance
The front panel meets IP65 for water and dust resistance, suitable for regular cleaning processes and strict hygiene requirements in food, beverage and pharmaceutical environments.

Image Quality
Industrial display modules are assembled in controlled conditions to provide stable, vivid images suitable for machine interfaces and process monitoring.

Display Ports and Customization
Customization options include product size, customer logo, LCD brightness, glass surface treatment, display ports (VGA/HDMI/DVI) and power plug selection for different countries to support integration and application-specific requirements.

Technical Specifications

• Display Size: 15 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch function (Optional)
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88,88,88,88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Dimension (W x H x D): 396 x 316 x 56.8 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Stainless front bezel (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certification: CE, FCC
• USB Port: 1x USB Type-A for touch control (Optional)
• Serial Port: 1x RS232 D-sub9 for touch control (Optional)
• Video Inputs: 1x VGA (Default); 1x HDMI (Optional); 1x DVI (Optional)
• Indicators: 1 x LED for power; 1 x LED for status
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Accessories Included: 100~240V AC to DC Adapter; Power Cord; External USB Cable for touchscreen control; External VGA Cable; External HDMI Cable; VESA screws
• Optional Accessory: External DVI Cable (Optional)
