LCD monitor W22L100-STA3

resistive touch screenfor chemical applicationsfor pharmaceutical applications

Product name

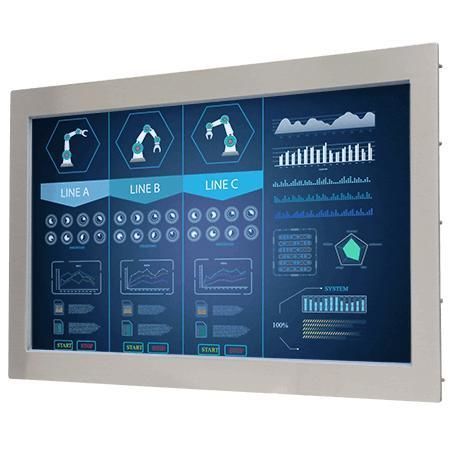

W22L100-STA3 — 21.5" stainless steel panel-mount display

Key features

• 21.5" Full HD (1920 x 1080) industrial panel display
• VGA input (standard); HDMI and DVI optional
• Panel-mount and VESA mounting options
• Front protection: IP65 (water and dust resistant)
• SUS304 stainless front bezel; fanless design; optional resistive touch or protection glass

Overview
The W22L100-STA3 is a 21.5-inch stainless steel panel-mount display engineered for hygienic and harsh industrial environments such as food processing, beverage and chemical plants. Its edge-to-edge flat front bezel in SUS304 minimizes crevices and enables thorough cleaning and sterilization. Waterproof connectors and a venting valve reduce internal moisture during washdown procedures. The fanless architecture and corrosion-resistant materials provide long-term reliability under rigorous cleaning regimens.

Features & benefits

• Touch / Protection options: Optional resistive touch for use with wet or gloved hands; optional protection glass (non-touch) for enhanced scratch resistance while preserving operability.
• Hygiene & washdown: Front IP65 rating enables water-jet cleaning and frequent sanitization cycles required in food, beverage and pharmaceutical operations.
• Image quality: Industrial-grade LCD module assembled under clean-room conditions for stable, consistent image performance.
• Customization: Configurable options for panel size, customer logo, LCD brightness, glass surface treatment, video ports and country-specific power connectors.
• Rugged construction: SUS304 front bezel and sealed connectors reduce contamination risk and simplify maintenance.

Certifications

• CE
• FCC

Accessories (included)

• 100–240V AC to DC adapter
• Power cord
• External USB cable for touchscreen control
• External VGA cable
• External HDMI cable
• VESA screws

Optional accessories

• External DVI cable

Cleaning and washdown capability
Designed to withstand intensive washdown and cleaning procedures common in food, beverage and chemical industries. The stainless front, sealed connectors and venting valve allow resistance to common cleaning agents, high-temperature water and pressure cleaning without compromising internal components.

Technical specifications

• Display: 21.5 inches; Resolution: 1920 x 1080; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; View Angles: 89/89/89/89; Colors: 16.7M; Active Area: 476.64 x 268.11 mm
• Touch / Glass: Resistive touch (optional); Protection glass (optional)
• Mechanical: Dimensions (W×H×D): 544 x 340 x 68 mm; Mounting: Panel mount and VESA
• Enclosure: Stainless front bezel (SUS304); Cooling: Fanless
• Environment: Operating humidity 10%–90% RH (non-condensing); Operating temp 0°C–50°C; Storage temp -10°C–60°C; Front IP rating: IP65
• Certifications: CE, FCC
• IO ports: 1x USB Type-A (touch control, optional); 1x RS232 D-sub9 (touch control, optional); Video: 1x VGA (default), 1x HDMI (optional), 1x DVI (optional)
• Indicators & controls: LED power indicator; LED status indicator; Buttons: Power, Adjust Up, Adjust Down, ESC (Auto), OK (Menu)
• Power: 12V DC (2.5φ DC jack)
