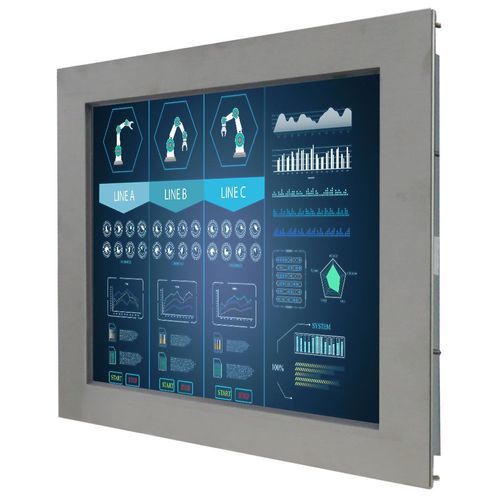

LCD monitor S17L500-STM1

resistive touch screenindustrial17"

Overview
The S17L500-STM1 is a 17-inch stainless steel panel-mount display (1280 x 1024) engineered for industrial environments that require frequent cleaning and strict hygiene standards, such as food, beverage and pharmaceutical production. It supports panel and VESA mounting, provides front IP65 protection and uses a fanless design for enhanced reliability.

Key Features

• 17-inch (1280 x 1024) stainless panel-mount display
• VGA input (default); HDMI and DVI optional
• Optional resistive touch or protection glass without touch
• Front IP65 protection and stainless front bezel
• Fanless design and VESA mounting

Resistive Touch / Protection Glass
The display is available with an optional resistive touch screen or with protection glass (no touch). The protective glass increases resistance to cold temperatures, wet fingers and dusty conditions and helps keep the screen operable even if the surface is scratched.

Dust and Water Resistant
Front panel meets IP65 rating for routine washdown and strict hygiene procedures in food, beverage and pharmaceutical environments.

Outstanding Image Quality
Industrial-grade display modules are assembled in clean-room conditions to ensure consistent image quality, high contrast and accurate colors for operator interfaces and monitoring applications.

Display Ports and Customization
A wide range of customization options is available, including product size, logo, LCD brightness, glass surface treatment and display ports. Power plug style can be selected to meet regional requirements.

Certifications

• CE
• FCC

Technical Specifications

• Size: 17 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.2M Colors
• Active Area: 337.920 x 270.336 mm
• Dimension: 440 x 360 x 67 mm
• Mounting: Panel mount; VESA Mount
• Enclosure: Stainless front bezel
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1x USB type-A for touch screen control (Optional)
• Serial Port: 1x RS232 D-sub9 for touch screen control (Optional)
• Video: 1x VGA input (Default); 1x HDMI input (Optional); 1x DVI input (Optional)
• Indicator: 1x LED Indicator for power; 1x LED Indicator for status
• Power Input: 1x 12V DC, 2.5φ DC jack
• Control Buttons: 1x Power Button; 1x Adjust up button; 1x Adjust down button; 1x ESC (Auto) button; 1x OK (Menu) button
• Accessory (included): 100~240V AC to DC Adapter; Power Cord; External USB Cable for Touchscreen Control; External VGA Cable; External HDMI Cable; VESA Screws
• Optional Accessory: External DVI Cable (Optional)
• Power Rating: 12V DC
