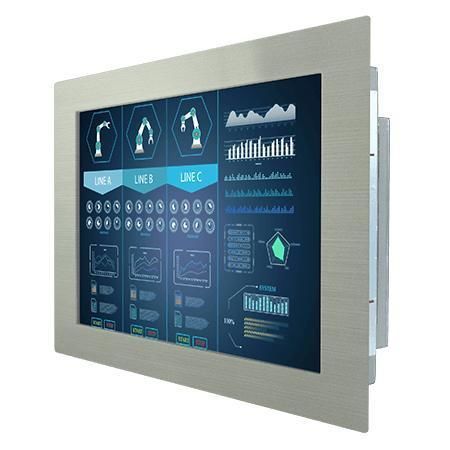

LCD monitor R19L300-STM1

resistive touch screenmarinemedical

Overview
Winmate R19L300-STM1 is a 19-inch stainless steel panel-mount display with optional resistive touch or protection glass. It is designed for applications that require regular cleaning and front IP65 protection, such as food processing, beverage, pharmaceutical, chemical and maritime environments.

Key features

• 19 inches, 1280 x 1024 resolution
• VGA input (default); HDMI and DVI optional
• Panel mount and VESA mount; stainless front bezel; front IP65

Certifications

• CE
• FCC

Touch and protection
Optional resistive touch or optional protection glass without touch. Protective glass resists penetration from sharp objects and remains operable despite surface scratches; suitable for cold, wet-finger and dusty conditions.

Dust and water resistance
Front IP65 rating supports regular washdown and hygiene procedures required in regulated production environments.

Image quality
250 nits panel brightness, 1000:1 contrast ratio, 16.7M colors; display modules assembled in clean-room conditions to facilitate system integration.

Display ports and customization
Customization options include product size, customer logo, LCD brightness, glass surface treatment, display ports and country-specific power plug selection.

Applications

• Hygienic food processing lines
• Beverage and pharmaceutical production
• Chemical and clean manufacturing
• Maritime and deck-mounted control panels (where IEC60945 compliance applies)

Accessories and options

• Included: 100~240V AC to DC adapter, power cord, external USB cable for touchscreen control, VGA cable, HDMI cable, VESA screws
• Optional: DVI cable, USB/RS232 touch interfaces (as required)

Specifications

• Model: R19L300-STM1
• Display size: 19 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch (Optional)
• Resolution: 1280 x 1024
• Panel brightness: 250 nits
• Contrast ratio: 1000:1
• View angles: 85, 85, 80, 80
• Display color: 16.7M Colors
• Active area: 376.32 x 301.06 mm
• Dimensions: 474 x 384 x 65 mm
• Mounting: Panel mount; VESA mount
• Enclosure: Stainless front bezel
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• USB port: 1 x USB Type-A for touch control (Optional)
• Serial port: 1 x RS232 D-sub9 for touch control (Optional)
• Video: 1 x VGA input (Default); 1 x HDMI input (Optional); 1 x DVI input (Optional)
• Indicators: 1 x LED power; 1 x LED status
• Power input: 1 x 12V DC, 2.5φ DC jack
• Buttons: Power; Adjust up; Adjust down; ESC (Auto); OK (Menu)
• Accessories: AC/DC adapter 100~240V, power cord, external USB cable, VGA cable, HDMI cable, VESA screws
• Optional accessory: External DVI cable
• Power rating: 12V DC
