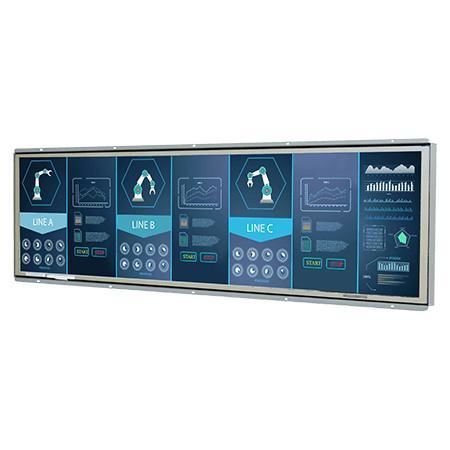

LCD monitor W28L100-OFA2

for digital signagefor displaysfor indoor use

Overview
The 28.6 in bar-type open frame display W28L100-OFA2 is designed for rear and VESA mounting in kiosks and digital signage installations. It delivers accurate color reproduction, anti-reflective protection glass and high brightness for indoor and semi-outdoor environments while the open-frame structure facilitates integration into ATMs, vending machines and embedded systems.

Key Features

• 28.6 in, 1920 x 540 resolution
• VGA (default) and HDMI (optional) inputs
• Open frame design
• VESA mounting (default); rear mount optional
• Front IP54 waterproof and dustproof
• Panel brightness: 700 nits

Applications & Benefits

• Engineered for kiosks, ATMs, vending machines, airport information displays, casino monitors and mall kiosks.
• Wide-format aspect ratio for panoramic content and elongated graphics.
• Anti-reflective glass and high brightness improve readability in bright ambient light.
• Open-frame form factor provides structural support without a bezel for easy integration into custom enclosures.

Certifications

• CE
• FCC

Technical Specifications

• Model: W28L100-OFA2
• Display Size: 28.6 inches
• Touch / Glass: Protection Glass w/o Touch Function (Optional)
• Resolution: 1920 x 540
• Panel Brightness: 700 nits
• Contrast Ratio: 4000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 196.425 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• Video I/O: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: Audio line out (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimension: 734 x 252 x 57 mm
• Mounting: VESA mount (Default); Rear mount (Optional)
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 24V DC input
