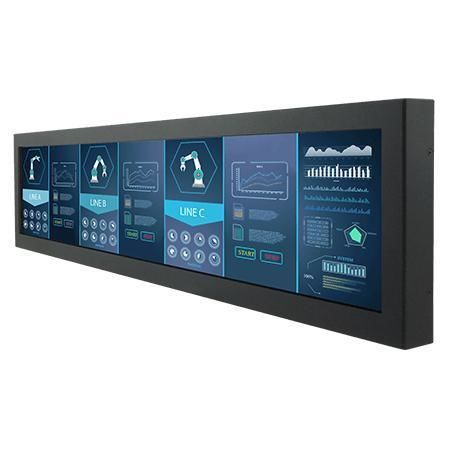

LCD monitor W28L100-CHA2

for digital signagefor displaysfor vehicles

Overview
Winmate 28.6 inches bar-type chassis display W28L100-CHA2 is designed for kiosk and digital signage installations. The slim metal chassis fits confined spaces, offers a front IP54 rating for dust and splash protection, and delivers 700 nits brightness with accurate color reproduction suitable for indoor and semi-outdoor environments.

Key Features

• 28.6 inches, 1920 x 540 resolution
• 700 nits panel brightness, 4000:1 contrast ratio
• VGA (default) and HDMI (optional) inputs
• Chassis (bar) form factor with metal enclosure
• VESA mountable; front IP54 waterproof & dustproof

Certifications

• CE
• FCC

Product Highlights

• Precise color reproduction — Ultra-wide format delivers realistic color accuracy for digital advertising and informative graphics.
• Anti-reflective cover — Protection glass reduces reflections to keep content clear and legible.
• High brightness — 700 nits ensure visibility under bright ambient light for indoor and semi-outdoor use.
• Chassis bar form — Slim metal housing designed for narrow or recessed installations.
• OPS-ready digital signage — Supports modular OPS concepts for separating display and system for easier maintenance and upgrades.

Inputs / Accessories

• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: Audio line out 3.5 mm (Optional); 2 x Speaker (Optional)
• Standard accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional accessory: Remote controller (varies)

Applications

• Digital signage and advertising in retail, transit, and exhibition spaces
• Kiosk displays and information terminals
• Integrated vehicle and bus signage solutions
• Wayfinding and public information panels

Technical specifications

• Model: W28L100-CHA2
• Brand: Winmate
• Touch / Glass: Protection Glass
• Size: 28.6 inches
• Resolution: 1920 x 540
• Panel Brightness: 700 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 196.425 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• Video: 1 x VGA (Default); 1 x HDMI (Optional)
• Audio: Audio line out 3.5 mm (Optional); 2 x Speaker (Optional)
• Dimension: 727.1 x 225.3 x 75 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 24V DC in
