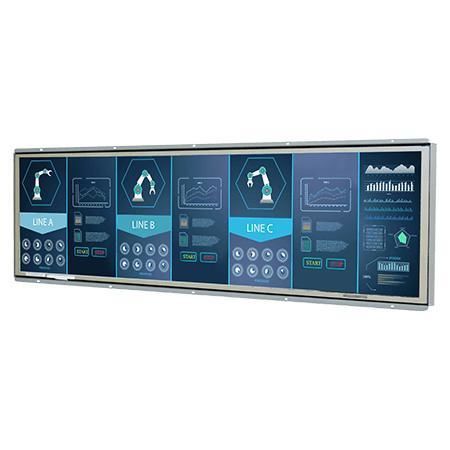

LCD monitor W38L100-OFA1

for industrial machinesfor digital signagefor displays

Overview

Bar-type open-frame display W38L100-OFA1 designed for integration into kiosks, cabinets and embedded enclosures. Ultra-wide 37-inch panel delivers accurate color reproduction and high brightness for legible content in bright indoor and semi-outdoor environments. Open-frame construction with metal enclosure enables easy OEM integration and custom bezel design. Front panel rated IP54 for water and dust protection; standard VESA mounting for straightforward installation.

Key features

• 37.0-inch ultra-wide panel, resolution 1920 x 540
• Panel brightness: 1500 nits; contrast ratio: 4000:1
• Inputs: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• USB port for touch-screen integration; optional audio and speakers
• Open-frame design, metal enclosure, fanless operation
• Front IP54 waterproof and dustproof; VESA mount standard

Certifications

• CE
• FCC

Technical specifications

• Display - Size: 37.0 inches
• Display - Resolution: 1920 x 540
• Display - Panel Brightness: 1500 nits
• Display - Contrast Ratio: 4000:1
• Display - View Angles: 89 / 89 / 89 / 89
• Display - Display Color: 1073.7M Colors
• Display - Active Area: 904.32 x 254.34 mm
• Mechanical - Dimension: 954 x 308 x 66 mm
• Mechanical - Mounting: VESA mount (default); rear mount optional
• Mechanical - Enclosure: Metal
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Power - Power Rating: 24V DC input (alternate mention: 12V DC in some materials)

IO & Accessories

• Video I/O: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch screen
• Audio: Audio line out (3.5 mm) (optional); 2 x speaker (optional)
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessories: Remote controller (varies by product)

Applications

• Ideal for kiosks, ATMs, vending machines, POS terminals and mall kiosks
• Suitable for digital signage, airport information displays, casino monitors and OEM integrations
• Designed for industrial automation, surveillance systems and other commercial/industrial installations requiring a slim open-frame solution
