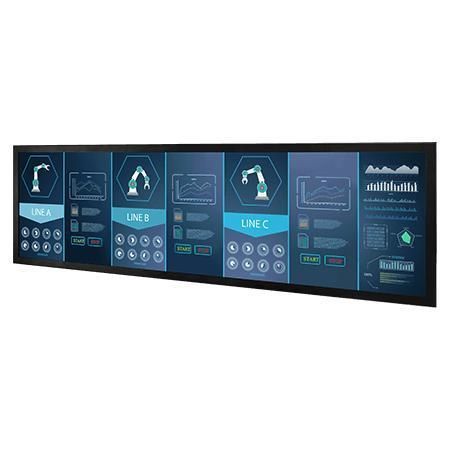

LCD monitor W38L100-CHA1
for digital signage37"1920 x 540

LCD monitor - W38L100-CHA1 - Winmate, Inc. - for digital signage / 37" / 1920 x 540
LCD monitor - W38L100-CHA1 - Winmate, Inc. - for digital signage / 37" / 1920 x 540
LCD monitor - W38L100-CHA1 - Winmate, Inc. - for digital signage / 37" / 1920 x 540 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD
Applications
for digital signage
Display size
37"
Resolution
1920 x 540
Mounting
VESA mounting
Other characteristics
HDMI, VGA, high-brightness, fanless, widescreen, waterproof, dust-proof, IP54
Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Product Name
  • W38L100-CHA1 — 37.0 inches Bar Type Chassis Display


Key Features
  • 37.0 inches, 1920 x 540 ultrawide resolution
  • VGA input (standard) and HDMI input (optional)
  • Chassis metal enclosure with VESA mounting
  • Front IP54 protection (waterproof and dustproof)
  • Anti-reflective protection glass; 1500 nits panel brightness


Certifications
  • CE
  • FCC


Overview
  • Precise color reproduction: ultrawide panel designed for faithful color rendering of digital advertising and information graphics.
  • Anti-reflective cover: protection glass minimizes glare to keep content clear in various lighting conditions.
  • High brightness: 1500 nits for improved visibility in brightly lit indoor and semi-outdoor locations.
  • Compact chassis design: slim bar-type housing suited for confined public spaces; available in multiple finishes.


I/O and Options
  • Video: 1 x VGA (Default); 1 x HDMI (Optional)
  • Audio: Audio line out (3.5mm) (Optional); 2 x Speaker (Optional)


Mechanical & Mounting
  • Dimensions (WxHxD): 928.3 x 282.1 x 69 mm
  • Active Area: 904.32 x 254.34 mm
  • Mounting: VESA mount
  • Enclosure: Metal
  • Cooling System: Fanless Design


Environment
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • Operating Humidity: 10% to 90% RH, non-condensing


Power & Accessories
  • Power Rating: 24V DC in
  • Standard Accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
  • Optional Accessories: Remote controller (varies by product)


Marketing / Application Notes
  • Designed for digital signage and public information displays including transit shelters and kiosk applications. Chassis variants and sealed housings are available for environments requiring enhanced protection and multiple content update methods.


Technical Specifications
  • Model: W38L100-CHA1
  • Brand: Winmate
  • Size: 37.0 inches
  • Resolution: 1920 x 540
  • Panel Brightness: 1500 nits
  • Contrast Ratio: 4000:1
  • View Angles: 89/89/89/89
  • Display Color: 1073.7M Colors
  • Active Area: 904.32 x 254.34 mm
  • Dimension (WxHxD): 928.3 x 282.1 x 69 mm
  • Mounting: VESA mount
  • Enclosure Material: Metal
  • Cooling: Fanless Design
  • Video Inputs: 1 x VGA (Default); 1 x HDMI (Optional)
  • Audio: Audio line out (3.5mm) (Optional); 2 x Speaker (Optional)
  • Protection / Front Ingress: Front IP54
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Power Rating: 24V DC in
  • Certifications: CE, FCC
