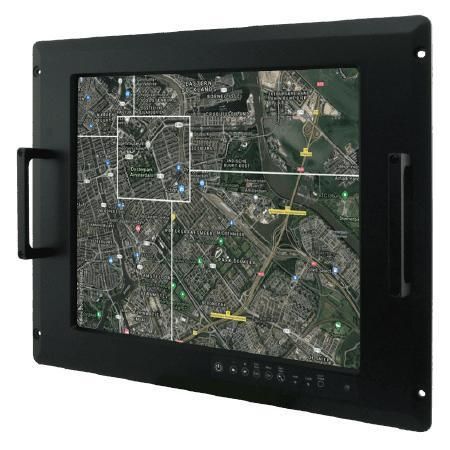

LCD monitor R17L100-RKA1ML

touch screenresistive touch screen5-wire resistive touch screen

Overview
Built by Winmate for defence and mission-critical applications, the R17L100-RKA1ML is a 17.0-inch rack-mount protective glass display designed to meet MIL-STD environmental and EMC requirements. The unit integrates AR protective glass, a fanless metal housing and both rack and VESA mounting options for easy integration into command consoles, vehicle systems and control rooms.

Key features

• MIL-STD-810G and MIL-STD-461E/G compliant protective AR glass
• Rack-mount mechanical design (8U) with VESA mount support
• Resolution 1280 x 1024, panel brightness 350 nits, contrast 1000:1
• Defence-grade power connector MIL-DTL-38999/1; AC 100–240V (default), DC 9–36V (optional)
• Built-in ambient light sensor for automatic brightness control
• Optional touch: 5-wire resistive; EMI ITO glass or EMI mesh filter variants
• Fanless design for silent, reliable operation in harsh environments

Designed for command centers and defence environments
The display is optimized for ergonomic command consoles and mission-critical installations. Defence-grade connectors and MIL-STD compliance facilitate integration with existing military systems and ensure secure, vibration-resistant power/data connections. Front-panel physical keys and on-screen controls allow quick adjustments in critical situations.

Usage highlights

• Suitable for vehicle-mounted displays, shipboard systems, command & control centers and control rooms
• Auto-brightness adapts to ambient lighting for consistent readability
• Multiple I/O options for legacy and modern video systems

Technical specifications

• Model: R17L100-RKA1ML
• Manufacturer: Winmate
• Display size: 17.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80 (L/R/U/D)
• Display color: 16.7M colors
• Active area: 337.920 x 270.336 mm
• Touch / Glass options: AR Protection Glass (default); EMI ITO Glass (optional); 5-wire Resistive Touch (optional); 5-wire Resistive Touch with EMI Mesh Filter (optional)
• Operating humidity: 10% to 95% RH
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• TEMPEST (optional): USA NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance: MIL-STD-461G (CE101, CE102, RE101, RE102, CS118 default; additional ranges optional); NATO STANAG 4370/AECTP501 mappings
• MIL-STD 810H coverage: Vibration Method 514.6; Humidity Method 507.6; Transit Drop Method 516.6 (default); additional NATO tests optional
• Certifications: CE, FCC
• Video / I/O ports: 1 x 15-pin D-Sub (VGA); 5 x BNC; 1 x DVI-D
• Dimensions: 482.6 x 399.3 x 69.6 mm
• Mounting: VESA mount (default); Rack mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: AC 100~240V Universal ±10% (default); DC 9~36V ±10% (optional)
• Accessories included: 1 x User Manual (Hardcopy); 1 x Power Cord MIL-DTL-38999/1; 1 x VGA Cable; 1 x DVI Cable; 1 x VGA to 5 BNC Shielding Cable
• Controls / front keys & sensors: Power key; + / - brightness keys; Menu key; Day/Night mode button; LED indicator/brightness button; Ambient light sensor
