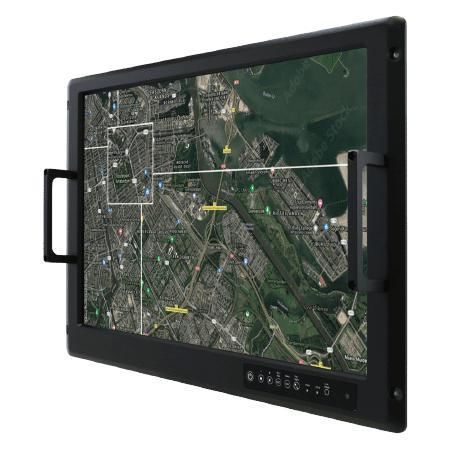

LCD monitor W24L100-RKS1ML

resistive touch screen5-wire resistive touch screenwith touchscreen

Overview
The 24.0-inch rack-mount protective glass defence display W24L100-RKS1ML is a mission-critical monitor engineered for defence and harsh industrial environments. It is designed and tested to MIL-STD-810G environmental and MIL-STD-461F/461G EMC standards for use in command centers, control rooms, vehicle installations and other defence applications.

Key Features

• MIL-STD-810G / MIL-STD-461E compliant defence-grade rack display
• Rack-mount mechanical design (8U) with VESA mounting support
• 1920 x 1200 resolution for high image detail
• Anti-reflective (AR) protection glass standard; EMI glass and resistive touch options
• Defence-grade power connector MIL-DTL-38999/1
• AC 100–240V universal input ±10% (default); DC 9–36V ±10% optional
• Built-in ambient light sensor with auto-brightness control

Certifications

• MIL-STD-461F / MIL-STD-461G (EMC compliance variants)
• MIL-STD-810G / MIL-STD-810H environmental testing
• CE
• FCC

Product Details
Reliable computing tailored for defence applications: the display is constructed with a metal housing and aluminum bezel and undergoes in-house reliability testing to ensure operation in harsh defence environments.

Command center integration: 8U rack-mount form factor with VESA compatibility enables ergonomic installation in command consoles and control rooms.

Defence connectivity: MIL-DTL-38999 type I power input connector provides compatibility with existing defence power systems.

User controls and touch options: front-panel OSD buttons and optional 5-wire resistive touch (with EMI mesh filter option) support quick local control; Day/Night mode and LED indicator brightness adjustments are provided.

Auto brightness control: ambient light sensor adjusts display luminance according to environment for consistent readability.

Technical Specifications

• Model: W24L100-RKS1ML
• Manufacturer: Winmate
• Display Size: 24.0 inches
• Resolution: 1920 x 1200
• Touch / Glass options: AR Protection Glass (Default); EMI ITO Glass (Optional); 5-wire Resistive Touch (Optional); 5-wire Resistive Touch with EMI Mesh Filter (Optional)
• Panel Brightness: 300 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89° / 89° / 89° / 89°
• Display Color: 16.7M Colors
• Active Area: 518.4 x 324.0 mm
• Operating Humidity: 10% to 95% RH
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -10 ~ 60 °C
• TEMPEST (optional): USA NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance examples: MIL-STD-461G (CE101, CE102, RE101, RE102, CS118 default; additional tests optional); NATO STANAG 4370/AECTP501 variants
• MIL-STD-810H tests: Vibration Method 514.6; Humidity Method 507.6; Transit Drop Method 516.6
• Certifications: CE, FCC
• Video / I/O Ports: 1 x 15-pin D-Sub (VGA); 5 x BNC; 1 x DVI-D
• Dimensions (W×H×D): 609.5 x 399.3 x 76.2 mm
• Mounting: VESA mount (Default); Panel mount (Optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: AC 100~240V Universal ±10% (Default); DC 9~36V ±10% (Optional)
• Accessories included: User manual (hardcopy), power cord MIL-DTL-38999/1, VGA cable, DVI cable, VGA to 5 BNC shielding cable
• Front controls: Power key, "+" key, "-" key, Menu key (auto/manual brightness), Day/Night mode button, LED indicator brightness adjustment, Ambient Light sensor
