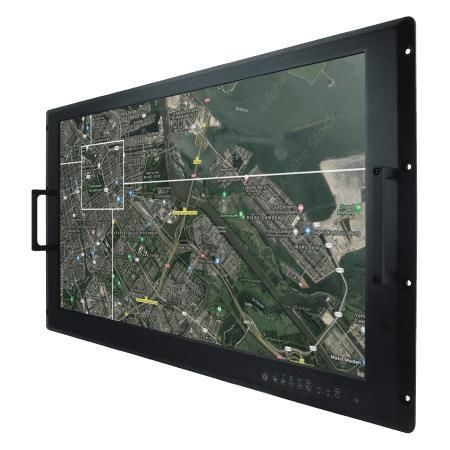

Touch screen monitor W32L100-RKA3ML

with touchscreenfor displays32"

Overview
Reliable computing tailored for defence applications
Winmate W32L100-RKA3ML is a 32" rack-mount defense display with AR protection glass and Full HD (1920 x 1080) resolution. Engineered for command centers and mission-critical environments, it features an 8U rack mechanical design, MIL-grade power connector options and automatic brightness control.

Key features

• Rack-mount form factor with AR protection glass compliant with MIL-STD-810G and MIL-STD-461E for defence environments
• 8U rack mechanical design and VESA support for flexible installation
• Full HD 1920 x 1080 panel with 400 nits brightness and 4000:1 contrast
• Defense-grade power connector (MIL-DTL-38999/1) for secure cable-to-panel connections
• Power input: AC 100~240V universal ±10% (default); DC 9~36V ±10% (optional)
• Built-in ambient light sensor for automatic brightness adjustment

Design & reliability
Designed and tested to meet MIL-STD environmental and EMC requirements, the display undergoes in-house reliability verification to ensure stable operation under vibration, humidity and transit-drop conditions. TEMPEST and NATO options are available where required.

Operation & ergonomics
Front-mounted touchscreen capability with physical OSD buttons provides fast access to central controls, including Day/Night mode, brightness up/down and menu functions. Fanless metal enclosure supports silent operation and integration into confined rack systems.

Certifications

• CE, FCC
• MIL-STD-810G / MIL-STD-810H (vibration, humidity, transit drop)
• MIL-STD-461G (EMC emissions & susceptibility; standard and optional test sets)
• Optional TEMPEST (NSA NSTISSAM TEMPEST/1-92) and NATO SDIP-27/ STANAG compliance options

Specifications

• Model: W32L100-RKA3ML
• Brand: Winmate
• Display size: 32.0 inches
• Touch / Glass: AR Protection Glass
• Resolution: 1920 x 1080
• Panel brightness: 400 nits
• Contrast ratio: 4000:1
• View angles: 89/89/89/89
• Display color: 16.7M colors
• Active area: 698.4 x 392.85 mm
• Operating humidity: 10% to 95% RH
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -10 ~ 60 °C
• IO ports: DVI, VGA (default); HDMI (optional)
• Dimension (W x H x D): 825 x 486 x 88.5 mm
• Mounting: VESA mount / Rack mount (8U)
• Enclosure: Metal, fanless design
• Power rating: AC 100~240V ±10% (default); DC 9~36V ±10% (optional)
• Accessories: User manual (hardcopy); Power cord MIL-DTL-38999/1 (2m); VGA/DVI/HDMI cables (2m)
• Front controls: Power, +, -, Menu, Day/Night mode, LED brightness adjust, Ambient light sensor
