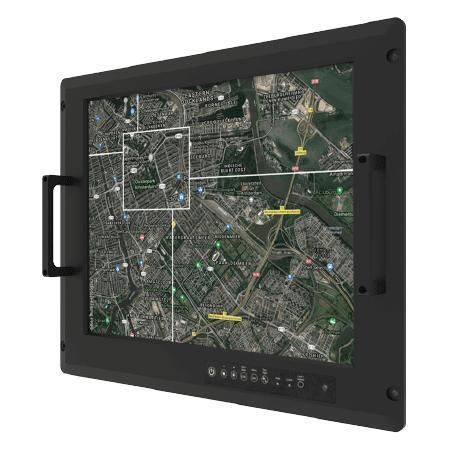

LCD monitor R19L100-RKA3ML

5-wire resistive touch screenwith touchscreen19"

Overview
19" rack-mount protective glass defence display designed for mission-critical defence and military applications. Engineered and tested to MIL-STD environmental and EMC standards for integration in command & control consoles, vehicle systems and hardened control rooms.

Key Features

• MIL-STD 810G / MIL-STD 461 series compliant options
• Rack-mount mechanical design (8U) with optional VESA mounting
• Resolution 1280 x 1024; panel brightness 350 nits; contrast 1000:1
• AR protection glass standard; EMI ITO glass and resistive touch options
• Defence-grade power connector MIL-DTL-38999/1; AC 100–240V standard, DC 9–36V optional
• Built-in ambient light sensor for automatic brightness control

Certifications & Compliance

• CE, FCC
• MIL-STD 461G (CE101, CE102, RE101, RE102, CS118 default; additional CS/RS tests optional)
• MIL-STD 810G / 810H environmental test coverage (vibration, humidity, transit drop, shock per listed methods)
• Optional NATO STANAG / AECTP and TEMPEST compliance

Design & Integration
Metal housing with aluminum bezel and fanless cooling. Front-panel physical OSD controls and optional touchscreen provide rapid operator access. Rack form-factor and defence-grade connectors simplify cable-to-panel integration with existing systems.

Built-in Functions

• Auto brightness via ambient light sensor
• Front-panel OSD buttons with Day/Night mode and LED indicator brightness control
• Multiple power input options and on-board control keys for operational use

Connectivity / I/O

• Video inputs: 1 x 15-pin D-Sub (VGA), 5 x BNC, 1 x DVI-D

Accessories (included)

• 1 x User Manual (Hardcopy)
• 1 x Power Cord MIL-DTL-38999/1
• 1 x VGA Cable
• 1 x DVI Cable
• 1 x VGA to 5 BNC Shielding Cable

Technical Specifications

• Model: R19L100-RKA3ML
• Brand: Winmate
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80
• Display colors: 16.7M
• Active area: 376.32 x 301.06 mm
• Touch/Glass options: AR Protection Glass (default); EMI ITO Glass (optional); 5-wire Resistive Touch (optional); 5-wire Resistive Touch with EMI Mesh Filter (optional)
• Operating humidity: 10% to 95% RH
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Mechanical dimensions: 482.6 x 399.3 x 76.9 mm
• Mounting: Rack mount (default); VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: AC 100~240V Universal ±10% (default); DC 9~36V ±10% (optional)
• Control keys: Power, +, -, Menu, Day/Night mode, LED indicator brightness adjust, Ambient Light sensor
• Certifications: CE, FCC; MIL-STD 461/810 variants and NATO/TEMPEST options
