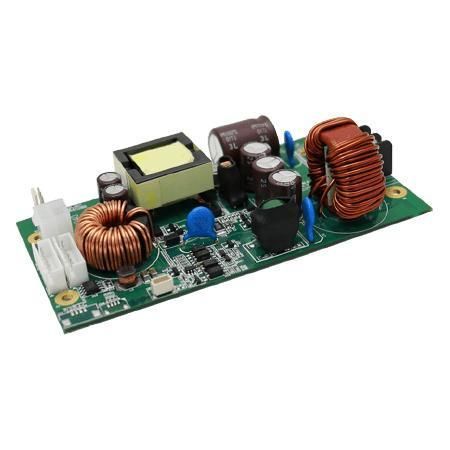

Step-down converter IRTPS

isolatedembeddedfor telecommunications equipment

Overview
The IRTPS is an isolated, regulated DC-DC converter module that converts a 9–36V DC input to an isolated 12V DC output rated at 100W (12V, 8.3A). It is intended for embedded and industrial systems requiring a dedicated isolated 12V rail and a modular approach to higher power delivery.

Key Features

• Isolated 12V output, 100W (12V, 8.3A)
• Wide input range: 9V to 36V DC
• High-frequency ZVS switching topology
• Low inrush current
• Output over-current protection (OCP) and over-voltage protection (OVP)
• Optional ignition control for vehicle/transportation power sequencing

Certifications

• CE
• FCC

Product Details
The module is designed for modular DC-DC system architectures: using multiple modules in parallel or distribution can increase power density and reduce overall footprint compared with single-part ultra-wide-input converters. The isolated output reduces conducted noise and transient coupling to sensitive downstream electronics.

Protection and Reliability
The IRTPS includes protections such as OCP, OVP, short-circuit protection and thermal shutdown. Low inrush current reduces startup stress on upstream supplies. The module is suitable for industrial and transportation environments where isolation and staged power-up are required.

Applications

• Industrial automation and robotics
• Embedded systems requiring isolated 12V rails
• Vehicle and transportation power systems (ignition control option)
• Communications and telecommunications equipment

System Specification

• Input Voltage: 9V to 36V DC
• Output: Isolated 12V, 8.3A (100W)
• Isolation: Yes
• Ripple & Noise: < 120 mV
• Line Regulation: < ±1% (rated input)
• Load Regulation: < ±5%
• Efficiency: Up to 90% (full load)
• Protections: OCP, OVP, short-circuit, thermal
• Dimensions: 120 x 62 x 31.1 mm

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Altitude: 0 to 10,000 ft

Mechanical

• Dimension: 120 x 62 x 31.1 mm

FAQ

• What is the IRTPS used for? — Provides an isolated 12V 100W rail from a 9–36V DC source for embedded and industrial systems.
• What input and output range does it support? — 9–36V DC input to isolated 12V output, rated 100W (12V, 8.3A).
• What protections are included? — Over-current, over-voltage, short-circuit and thermal protection.
• Is it suitable for vehicle systems? — Yes. An optional ignition control function supports vehicle power sequencing.
