4:1 input voltage range DC/DC converter IRT40

regulatedisolatedembedded

Overview

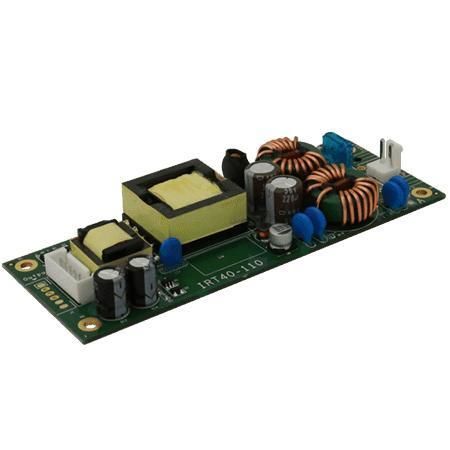

The IRT40 is an isolated DC-DC converter module that converts a 9–36V DC input to a regulated isolated 12V output up to 40W. It is intended for industrial and embedded applications that require a compact, efficient and protected isolated 12V supply.

Key features

• Isolated DC-DC converter module delivering up to 40W
• Wide input voltage range: 9V to 36V DC
• Regulated isolated 12V output (12V @ 3.3A)
• Low inrush current for controlled startup
• High-frequency ZVS topology for consistent efficiency

Protections and performance

• Output over-current protection (OCP), output over-voltage protection (OVP)
• Short-circuit protection and thermal protection
• Ripple and noise typically less than 120 mV
• Efficiency up to 90% at full load (some product literature cites up to ~95% in specific conditions)

Certifications

• CE
• FCC

Applications

• Industrial controllers and automation subsystems
• Communications equipment and embedded systems
• Vehicle electronics and battery-powered systems
• Any application requiring an isolated 12V supply from a 9–36V source

Technical specifications

• Model: IRT40
• Function: Isolated DC-DC converter module
• Input voltage: 9V to 36V DC
• Output: 12V regulated isolated output
• Load range: 12V @ 3.3A
• Power rating: 40W
• Isolation: Yes (isolated output)
• Ripple and noise: Less than 120 mV
• Line regulation: Less than ±1% at rated 9~36V input
• Load regulation: Less than ±5%
• Efficiency: Up to 90% at full loading (product literature also references up to ~95%)
• Protection: OCP, OVP, short-circuit protection, thermal protection
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Altitude: 0 to 10,000 ft
• Dimensions: 120 x 45 x 18.6 mm
