PCAP touchscreen panel PC W10IE3S-MRH2FP

multitouch screentouch screen10.1"

Overview

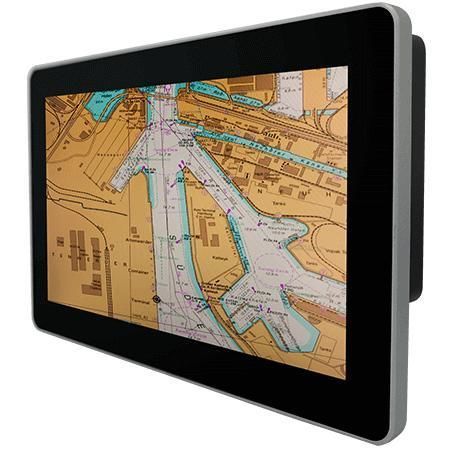

Winmate 10.1" Marine Dashboard Panel PC W10IE3S-MRH2FP features a 1280 x 800 wide-view display with projected capacitive (PCAP) multi-touch and an Intel® Elkhart Lake Pentium® N6415 processor. Engineered for marine environments, the unit offers IP66 front protection, fanless cooling, shock tolerance and a wide 9–36V DC power input for vessel integration.

Key features

• Intel® Elkhart Lake Pentium® N6415 processor (up to 3.0 GHz)
• 10.1" 1280 x 800 wide-view PCAP multi-touch display, 350 nits
• Wide 9–36V DC input via terminal block

Certifications

• CE
• FCC

Product details
The W10IE3S-MRH2FP is built for shipboard dashboards, navigation consoles and control stations. Its metal enclosure and fanless design reduce maintenance while IP66-rated front protection resists dust and strong water jets. PCAP multi-touch supports gestures for fast, intuitive interaction. The unit integrates industrial I/O for system connectivity including dual LAN, USB3.2 Type-A, configurable RS232/422/485 serial ports and optional HDMI output. TPM 2.0 and optional Windows IoT Enterprise images support secure, long-term deployments.

Technical specifications

• Model: W10IE3S-MRH2FP
• Display: 10.1 inches, Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 800
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• Viewing Angles: 85/85/85/85
• Active Area: 216.96 x 135.6 mm
• Processor: Intel® Pentium® N6415 (1.5M Cache, up to 3.0 GHz)
• Memory: 4GB (default); 8GB, 16GB (options)
• Storage: 256GB (default); 512GB (option)
• Ethernet: 2 x 2.5G LAN (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise LTSC (64-bit); Windows 10 IoT Enterprise (64-bit)
• Operating Humidity: 5% to 95%
• Operating Temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms
• IP rating: IP66 (front side)
• I/O: 2 x USB3.2 Gen1x1 (Type-A); 2 x RS232 (default) / RS422 / RS485; 2 x RJ45 LAN; 1 x HDMI 2.0 (optional)
• Mechanical Dimension: 263.28 x 172 x 35.7 mm
• Weight: 3 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 9 ~ 36V DC input via terminal block
• Accessories: Driver CD & User Manual; AC to DC Adapter 12V / 50W; Power Cord; 3-pin Terminal Block to DC Jack
