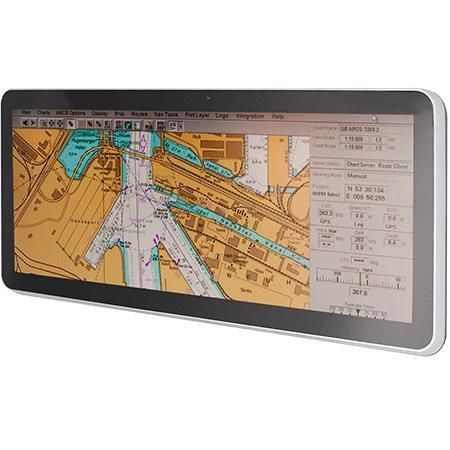

Widescreen panel PC W12IE3S-MRB1FP

PCAP touchscreenmultitouch screen1000 nits

Overview
Winmate 12.3-inch Marine Dashboard Panel PC W12IE3S-MRB1FP designed for bridge and helm applications. Features a wide-format 1920 x 720 high-brightness display with projected capacitive (PCAP) multi-touch, fanless thermal design, metal enclosure and wide 9–36 V DC input for vessel power systems. Front-side IP66 rating and extended operating ranges support continuous operation in marine environments.

Key Features

• Intel Elkhart Lake Pentium N6415 processor
• 12.3-inch 1920 x 720 wide viewing-angle display with PCAP multi-touch
• Wide DC input 9–36 V and fanless design for marine integration

Certifications

• CE
• FCC

Display

• Size: 12.3 inches
• Resolution: 1920 x 720 (wide format)
• Type: Projected Capacitive (PCAP) multi-touch
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 88°/88°/88°/88°

System Specification

• Processor: Intel Pentium N6415 (Elkhart Lake), up to 3.0 GHz
• Memory: 4 GB (default); 8 GB / 16 GB optional
• Storage: 256 GB (default); 512 GB optional
• Ethernet: 2 x 2.5 Giga LAN RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise LTSC (64-bit); Windows 10 IoT Enterprise (64-bit)

Environment

• Operating humidity: 5% to 95%
• Operating temperature: -15 °C to 55 °C
• Shock: 15G, 11 ms
• Front IP rating: IP66

I/O Ports

• USB: 1 x USB 3.2 Gen1 Type-A
• Serial: 2 x RS232 (default), configurable to RS422/485
• LAN: 2 x RJ45 (multi-speed, 1G/2.5G)
• Video: HDMI 2.0 (optional)

Mechanical

• Dimensions: 325.02 x 146.5 x 45 mm
• Weight: 3.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal
• Cooling: Fanless design

Accessories

• User manual
• M16 power cable
• M12 COM port cable
• M12 USB/LAN cable
• M12 USB cable

Power

• Power input: 9–36 V DC via terminal block

Additional product details
The wide-format display is suited to bridge instrumentation and navigation charts, allowing simultaneous presentation of multiple data sources. High 1000-nit brightness ensures readability in sunlight; PCAP multi-touch supports gesture control (zoom, pan, scroll) for intuitive operation at the helm. Fanless construction and IP66 front reduce maintenance and increase reliability in humid, salty, and dusty marine environments. M12-type accessory cabling and robust I/O set simplify integration into ship networks and instrumentation racks.

Technical specifications

• Model: W12IE3S-MRB1FP
• Series: Marine Dashboard Panel PC
• Brand: Winmate
• Processor: Intel Pentium N6415 (1.5M Cache, up to 3.0 GHz)
• Memory options: 4 GB / 8 GB / 16 GB
• Storage options: 256 GB / 512 GB
• Display size/resolution: 12.3-inch / 1920 x 720
• Touch: Projected Capacitive Multi-Touch (PCAP)
• Brightness: 1000 nits
• Contrast: 1000:1
• Viewing angles: 88°/88°/88°/88°
• Ethernet: 2 x 2.5 Giga LAN
• USB: 1 x USB 3.2 Gen1 Type-A
• Serial: 2 x RS232 (default) / RS422 / RS485
• Video output: HDMI 2.0 (optional)
• Power input: 9–36 V DC (terminal block)
• Front IP rating: IP66
• Operating temperature: -15 to 55 °C
• Operating humidity: 5% to 95%
• Shock rating: 15G, 11 ms
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise LTSC (64-bit) / Windows 10 IoT Enterprise (64-bit)
• Mechanical: 325.02 x 146.5 x 45 mm; 3.5 kg; VESA / Panel mount
• Enclosure: Metal, fanless
• Certifications: CE, FCC
