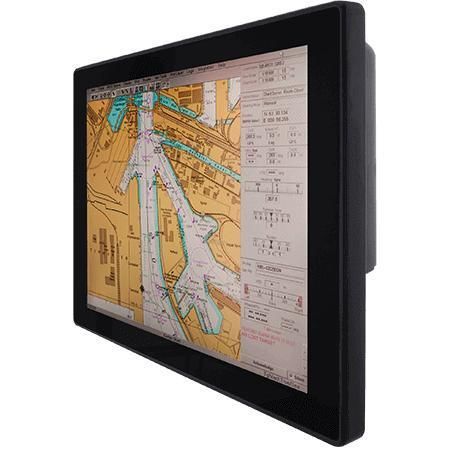

PCAP touchscreen panel PC R12IE3S-MRM2FP

multitouch screentouch screen1000 nits

Overview
The Winmate R12IE3S-MRM2FP is a 12.1" marine panel PC designed for navigation, monitoring and control on vessels. It features a 1024 x 768 wide‑angle display with projected capacitive (PCAP) multi‑touch and a low‑power Intel® Pentium® N6415 processor for fanless, reliable operation in maritime environments.

Key Features

• Intel® Elkhart Lake Pentium® N6415 processor
• 12.1" 1024 x 768 wide viewing angle display with PCAP multi‑touch
• Wide DC input: 9–36 V (terminal block)

Certifications

• CE
• FCC

Product Highlights

• Optional high‑brightness panel (500 nits default; 1000 nits optional) for sunlight readability
• PCAP multi‑touch supporting multi‑gesture controls for intuitive operation
• Fanless metal enclosure for reduced maintenance and improved reliability
• Rugged environmental tolerance: extended operating temperature, shock resistance and IP66 front protection
• Multiple I/O for integration with onboard systems (LAN, USB, serial ports, optional HDMI)

Recommended Marine Applications

• Navigation displays and chart plotting
• Centralized monitoring and control of propulsion, machinery and systems
• Vessel performance monitoring and crew interface

Technical specifications

• Model: R12IE3S-MRM2FP
• Brand: Winmate
• Display: 12.1 inches, 1024 x 768, PCAP projected capacitive multi‑touch
• Panel Brightness: 500 nits (default); 1000 nits (optional)
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm
• Processor: Intel® Pentium® N6415 (1.5M Cache, up to 3.0 GHz)
• Memory: 4 GB (default); 8 GB / 16 GB (options)
• Storage: 256 GB (default); 512 GB (optional)
• Ethernet: 2 x 2.5 Giga LAN controller; 2 x RJ45 (10/100/1000 Mbps)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise LTSC (64‑bit), Windows 10 IoT Enterprise (64‑bit)
• IO: 2 x USB 3.2 Gen1 Type‑A; 2 x RS232 (default) / RS422 / RS485; 1 x HDMI 2.0 (optional)
• Environment: Operating humidity 5%–95%; operating temperature -15 ~ 55 °C; shock 15G (11 ms)
• Ingress Protection: IP66 (front side)
• Mechanical: 296.2 x 226.7 x 45.5 mm; weight 2.3 kg; VESA mount; metal enclosure
• Cooling: Fanless design
• Power: 9 V ~ 36 V DC input (terminal block)
• Accessories: Driver CD & user manual; AC‑DC adapter 12 V / 50 W; power cord; 3‑pin terminal block to DC jack
• Certifications: CE, FCC
