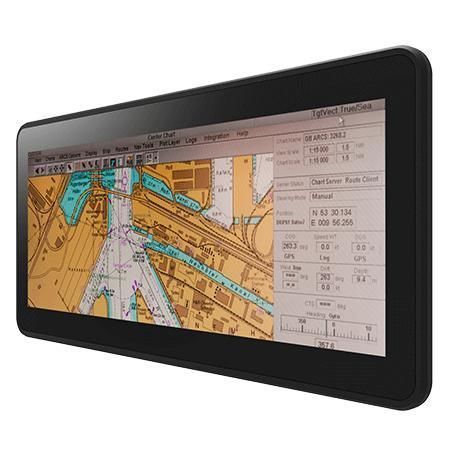

Multitouch screen panel PC W15IE3S-MRB1FP

widescreentouch screenPCAP capacitive touch screen

Overview
The Winmate W15IE3S-MRB1FP is a 14.9-inch marine panel PC designed for vessel navigation, monitoring and control. It features a wide-format 1920×720 display with projected capacitive (PCAP) multi-touch and a fanless, metal enclosure rated IP66 at the front for reliable operation in maritime conditions.

Key features

• Intel® Elkhart Lake Pentium® N6415 processor for stable onboard computing
• 14.9-inch 1920×720 wide display, PCAP multi-touch, 950 nits brightness
• 9–36 V DC wide-range power input for marine power systems

Certifications

• CE
• FCC

Product description
The unit is optimized for ECDIS, navigation stations and centralized monitoring. Its wide-format screen enables simultaneous display of charts, sensor data and alarms. The fanless design reduces maintenance needs and improves reliability in vibration-prone environments. Front IP66 protection and a metal chassis support installation on bridges, consoles and instrument panels. TPM 2.0 and support for Windows IoT Enterprise options enable secure integration with shipboard software.

Interfaces & I/O

• USB: 2 × USB 3.2 Gen1x1 (Type-A)
• Serial: 2 × RS232 (default), configurable to RS422/485
• LAN: 2 × RJ45 (10/100/1000 Mbps)
• Video (optional): 1 × HDMI 2.0

Environment & Reliability

• Operating temperature: -15 to 55 °C
• Operating humidity: 5% to 95% RH
• Shock tolerance: 15G, 11 ms
• Front protection: IP66

Accessories (included / typical)

• Driver CD & User Manual
• AC to DC adapter 12 V / 50 W
• Power cord
• 3-pin terminal block to DC jack cable

Technical specifications

• Model: W15IE3S-MRB1FP
• Brand: Winmate
• Display: 14.9-inch, PCAP multi-touch, 1920×720, 950 nits, 1000:1 contrast
• Active area: 355.68 × 133.38 mm
• CPU: Intel® Pentium® N6415 (up to 3.0 GHz)
• Memory: 4 GB default; 8 GB / 16 GB optional
• Storage: 256 GB default; 512 GB optional
• Ethernet: 2 × RJ45 (10/100/1000 Mbps); system reports 2 × 2.5 G LAN controller
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise LTSC / Windows 10 IoT Enterprise
• Dimensions: 400.1 × 187.6 × 59 mm
• Weight: 4.8 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal, fanless
• Power input: 9–36 V DC via terminal block
