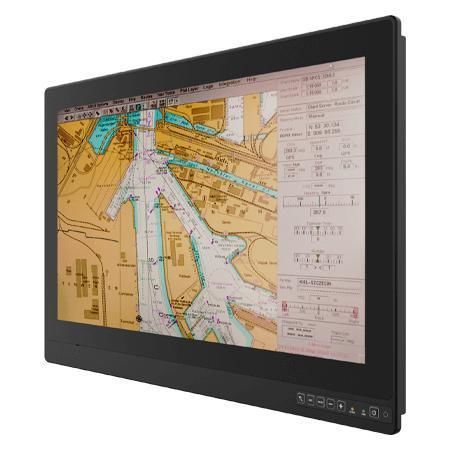

Multitouch screen monitor W27L100-MRA3FP

projected capacitive touchscreenPCAP touchscreenfor displays

Overview
The Winmate W27L100-MRA3FP is a 27-inch 4K UHD (3840 x 2160) marine display with projected capacitive (P-CAP) multi-touch designed for ship bridges, ECDIS systems and maritime control rooms. The unit features an edge-to-edge narrow bezel, fanless cooling and an anti-corrosion anodized aluminum bezel for continuous operation in marine environments.

Key Features

• 27-inch 3840 x 2160 (4K UHD) panel with projected capacitive multi-touch
• Sunlight-readable panel (400 nits) and AR coating option
• Edge-to-edge narrow bezel and fanless thermal design
• Front OSD keys for quick switching between ECDIS DAY, DUSK and NIGHT modes
• Wide DC input: 9–36 V DC acceptable; 24 V DC-in with isolation (certificate-approved)
• Meets marine standards: IEC60945 (4th), DNVGL-CG-0339, IACS E10
• Optional color calibration for ECDIS compliance and optional optical bonding

Certifications

• IACS E10
• IEC60945 (4th edition)
• DNVGL-CG-0339
• FCC
• CE

Highlights and Use Cases
The W27L100-MRA3FP delivers high-resolution imagery and accurate color reproduction suited for navigation charts, radar overlays, engine-room monitoring and surveillance on offshore installations. P-CAP multi-touch supports multi-finger gestures and glove operation. Optional AR coating and optical bonding improve readability in high-glare or direct-sunlight conditions. Typical deployments include ECDIS consoles, bridge navigation stations and maritime surveillance centers.

Technical specifications

• Model: W27L100-MRA3FP
• Display size: 27.0 inches
• Touch / glass: Projected Capacitive Multi-Touch (AR coating default); AG film or AR glass optional
• Resolution: 3840 x 2160 (4K UHD)
• Panel brightness: 400 nits
• Contrast ratio: 1000:1
• Viewing angles: 89 / 89 / 89 / 89
• Display color: 1.07B colors
• Active area: 596.16 x 335.34 mm
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55°C
• Shock: 15G, 11 ms
• Vibration: 0.7 g @ DNV-CG-0339 (Class A)
• IP rating (front): IP66
• USB: 1 x USB (for touch)
• Serial: 1 x RS232 (remote control)
• Video inputs: 1 x VGA; 1 x DVI-D; 2 x HDMI 2.0; 1 x DisplayPort
• Buzzer: 75–80 dB @ 2300 Hz, 1 m
• Dimensions: 679.2 x 450 x 69 mm
• Cut-out: 655 x 430 mm
• Weight: 16.7 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Anodized aluminum bezel (anti-corrosion)
• Cooling: Fanless design
• Power: 24 V DC-in with isolation (certificate-approved); 9–36 V DC input acceptable
• Power consumption: 55 W (typical)
• Accessories: User manual; AC-DC adapter; power cord; 3-pin terminal block; VGA/DVI/DP/2×HDMI/RS232/USB cables
