Multitouch screen monitor W43L100-MRA2FP

multi-touch screenprojected capacitive touchscreenPCAP capacitive touch screen

Overview

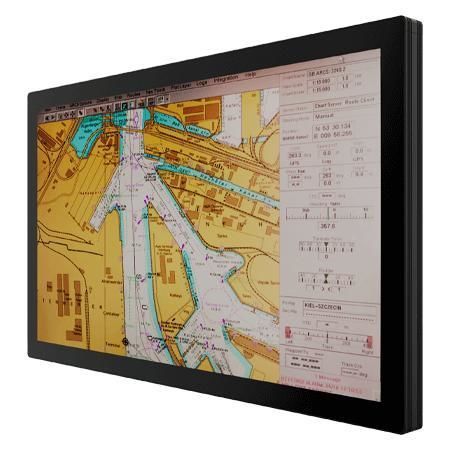

Winmate W43L100-MRA2FP is a 43-inch 4K UHD marine display engineered for continuous use on vessels and maritime control stations. It provides 3840 × 2160 resolution, projective capacitive multi-touch, fanless cooling and front-side IP66 protection. The unit supports OSD quick modes for ECDIS DAY/DUSK/NIGHT and accepts 9–36 V DC input with isolation options for marine power systems.

Key Features

• 43-inch 3840 x 2160 (4K UHD) with projective capacitive multi-touch (P-CAP)
• Fanless cooling for low maintenance
• 6-key OSD for fast switching: ECDIS DAY / DUSK / NIGHT
• Wide DC input: 9–36 V DC (24 V DC-in with isolation certification)
• Front IP66 protection and marine-grade enclosure
• Optional factory color calibration for IEC 61174 (ECDIS) compliance

Certifications

• IACS E10
• IEC60945 (4th edition)
• DNV-CG-0339
• CE
• FCC

Product Details
The 4K UHD panel delivers clear rendering of navigation charts and multiple information windows to support bridge operations. Projective capacitive touch enables intuitive gestures (zoom, pan) for real-time interaction. The metal housing with aluminum bezel and a fanless thermal design improve reliability in salt and humidity environments. OSD front controls provide immediate adaptation to ambient light conditions.

I/O and Connectivity

• USB: 1 x (for touch)
• Serial: 1 x RS232 (remote control)
• Video inputs: 1 x VGA, 1 x DVI-D, 2 x HDMI 2.0, 1 x DisplayPort
• Buzzer: 75–80 dB @ 2300 Hz (measured at 1 m)

Mechanical and Mounting

• Dimensions: 1028.8 x 617 x 48 mm
• Weight: 29.5 kg
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design

Environment & Durability

• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55°C
• Shock: 15G, 11 ms duration
• Vibration: 0.7 g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front side)
• TEMPEST: igore

Power

• Power rating: 24 V DC-in with isolation (certificate approval)
• Input range: 9 ~ 36 V DC acceptable
• Power consumption: 100 W (typical)

Accessories

• User manual
• AC to DC adapter
• Power cord
• 3-pin terminal block
• 1 x VGA cable, 1 x DVI cable, 1 x DP cable, 2 x HDMI cables
• 1 x RS232 cable, 1 x USB cable

Product FAQs / Operational Notes

• Visual performance: 4K resolution, 4000:1 contrast and 500 nits brightness support clear chart and multi-source views.
• Color accuracy: supports up to 1.07 billion colors; optional factory calibration aligns with IEC 61174 for ECDIS.
• Marine robustness: IP66 front, metal housing and fanless design resist dust, water jets and salt environments.
• Touch behavior: P-CAP multi-touch supports gestures required for navigation workflows.
• Operational modes: OSD DAY/DUSK/NIGHT modes adapt display contrast for bridge lighting conditions.
• Integration: multiple video inputs plus USB and RS232 enable connection to radar, ECDIS, monitoring and CCTV systems.

Technical specifications

• Model: W43L100-MRA2FP
• Brand: Winmate
• Display size: 42.5 inches (active area 941.184 x 529.416 mm)
• Resolution: 3840 x 2160 (4K UHD)
• Touch / Glass: Projective Capacitive Multi-Touch (AR coating default); AG film / AR glass optional
• Panel brightness: 500 nits
• Contrast ratio: 4000:1
• View angles: 89 / 89 / 89 / 89
• Display color: 1.07B colors
• IO: USB 1x (touch), RS232 1x
• Video: VGA 1x, DVI-D 1x, HDMI 2.0 x2, DP 1x
• Dimensions: 1028.8 x 617 x 48 mm
• Weight: 29.5 kg
• Mounting: VESA
• IP rating: IP66 (front)
• Power input: 9~36 V DC (24 V DC-in with isolation)
• Power consumption: 100 W (typical)
