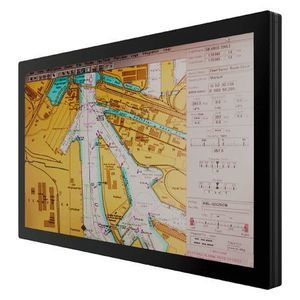

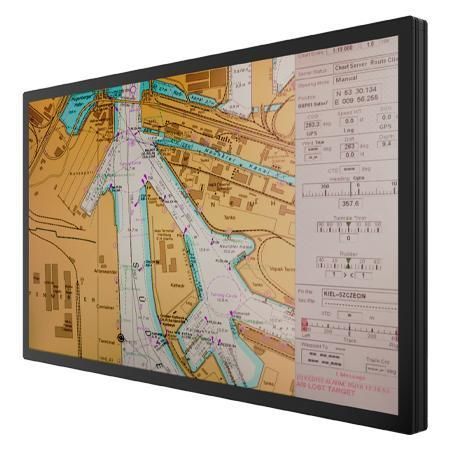

Multitouch screen monitor W55L100-MRA1FP

projected capacitive touchscreen55"3840 x 2160

Overview
Winmate W55L100-MRA1FP is a 55-inch 4K UHD marine display with projected capacitive multi-touch (P-CAP) engineered for ship bridges, ECDIS, control rooms and offshore installations. It delivers 3840 x 2160 resolution, wide viewing angles and an IP66-rated front panel to support reliable visualization and multi-operator interaction in maritime environments.

Key Features

• 55-inch 4K UHD (3840 x 2160) with P-CAP multi-touch and AR coating (AG optional)
• Fanless cooling for continuous 24/7 operation and reduced ingress risk
• 6 front OSD keys for quick ECDIS DAY / DUSK / NIGHT mode switching
• Wide-range power input 100–240V AC
• Front IP66 protection and metal housing with anodized aluminum bezel
• Optional color calibration for ECDIS / IEC 61174 compliance

Certifications & Compliance

• IEC 60945 (4th Edition)
• DNVGL-CG-0339
• IACS E10
• CE, FCC

Design & Usability
The large active area and high brightness support multi-window navigation, chart and radar clarity. P-CAP touch enables multi-finger gestures and multi-user operation; optional AR coating reduces glare on bright bridges. Front OSD keys provide fast mode changes without accessing system menus.

Integration & Connectivity
Multiple video inputs ease integration with legacy and modern shipboard systems: VGA, DVI-D, 2×HDMI 2.0 and DisplayPort. USB forwards touch data and RS232 enables remote control. Supplied cables and terminal block simplify installation and commissioning.

Reliability in Harsh Environments
Designed for maritime conditions, the display meets shock and vibration criteria, operates from -15 to 55 °C and 5–95% RH (non-condensing), and uses fanless cooling to limit salt and dust ingress for reduced maintenance.

Technical Specifications

• Model: W55L100-MRA1FP
• Brand: Winmate
• Display size: 55.0 inches
• Resolution: 3840 x 2160 (4K UHD)
• Touch / Glass: Projected Capacitive Multi Touch Screen (AR coating default); AG film optional
• Panel brightness: 500 nits
• Contrast ratio: 4000:1
• View angles: 89 / 89 / 89 / 89
• Display color: 1.07B colors
• Active area: 1209.6 x 680.4 mm
• Operating temperature: -15 ~ 55 °C
• Operating humidity: 5% to 95% (non-condensing)
• Shock: 15G, 11 ms duration
• Vibration: 0.7 g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front side)
• Power input: 100–240V AC
• I/O: 1 × USB (touch), 1 × RS232, 1 × VGA, 1 × DVI-D, 2 × HDMI 2.0, 1 × DisplayPort
• Buzzer: 75–80 dB, 2300 Hz @ 1 m
• Dimensions: 1273 x 744.6 x 62.5 mm
• Weight: 24 kg
• Mounting: VESA mount; supports panel and VESA installations
• Enclosure: Metal housing with aluminum bezel (anodized)
• Cooling: Fanless design
• Accessories: User manual; power cord; 3-pin terminal block; 1 × VGA cable; 1 × DVI cable; 1 × DP cable; 2 × HDMI cables; 1 × RS232 cable; 1 × USB cable
