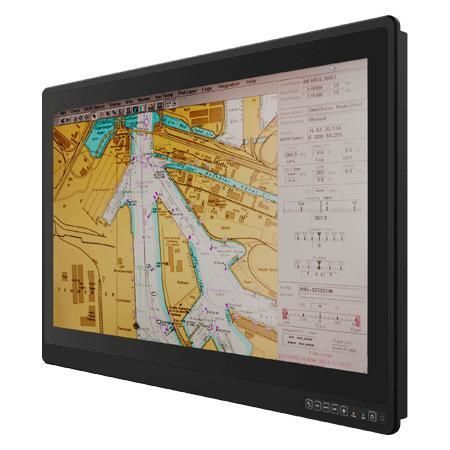

Multitouch screen monitor W32L100-MRA1FP

projected capacitive touchscreenLED backlightfor displays

Overview
Winmate W32L100-MRA1FP is a 32-inch 4K UHD (3840 x 2160) marine-grade touch display designed for ship bridges, control stations and radar/ECDIS systems. It integrates a projected capacitive (P-CAP) multi-touch panel, anodized aluminum bezel and fanless thermal design to withstand maritime environments. The front panel provides IP66 ingress protection and the unit accepts wide DC input for vessel power systems.

Key features

• 32-inch 3840 x 2160 (4K UHD) resolution with projected capacitive multi-touch
• Edge-to-edge narrow bezel, anodized aluminum front bezel and fanless cooling
• 6-button OSD for quick DAY / DUSK / NIGHT ECDIS modes
• Wide DC input: accepts 9–36 V DC (24 V DC-in with isolation, certified)
• Optional color calibration for IEC 61174 ECDIS compliance; optional AR/optical bonding
• Front-side IP66 protection; certified to IEC 60945 (4th), DNV-CG-0339 and IACS E10

Certifications

• IACS E10
• IEC 60945 (4th Edition)
• DNV-CG-0339
• CE
• FCC

Marine & usability highlights
The display is engineered for continuous 24/7 operation with an energy-efficient LED backlight and fanless thermal solution. The P-CAP touchscreen supports multi-user and glove operation; front OSD keys enable instant switching between DAY/DUSK/NIGHT modes. Color calibration options ensure compliance with ECDIS color requirements.

Applications

• Ship bridge and navigation workstations
• ECDIS chart plotting and radar monitoring
• Offshore control and surveillance stations
• Naval and military bridge installations

Specifications

• Model: W32L100-MRA1FP
• Brand: Winmate
• Display size: 32.0 inches
• Resolution: 3840 x 2160 (4K UHD)
• Touch / Glass: Projected capacitive multi-touch (AR coating default); AG film or AR glass optional
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 89/89/89/89
• Display color: 1.07B colors
• Active area: 708.48 x 398.52 mm
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms
• Vibration: 0.7 g (DNV-CG-0339 Class A)
• IP rating: IP66 (front side)
• USB: 1 x USB (touch)
• Serial: 1 x RS232 (remote control)
• Video inputs: 1 x VGA; 1 x DVI-D; 2 x HDMI 2.0; 1 x DisplayPort
• Buzzer: 75–80 dB, 2300 Hz @1 m
• Dimensions: 795 x 524 x 75.5 mm
• Cut-out: 770 x 500 mm
• Weight: 18.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Anodized aluminum bezel
• Cooling: Fanless design
• Power rating: 24 V DC-in with isolation; accepts 9–36 V DC
• Power consumption: 65 W (typical)
• Accessories: User manual; AC-DC adapter; power cord; 3-pin terminal block; VGA/DVI/DP/2xHDMI/RS232/USB cables
