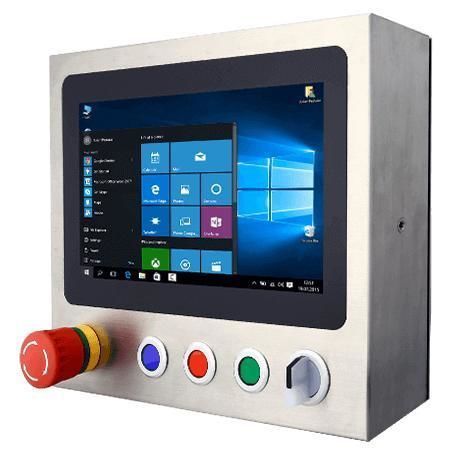

PCAP touchscreen panel PC W10IE3S-SPH2-B

multitouch screen10.1"Intel® Atom

Key features

• Intel Atom® x6413E Elkhart Lake processor
• Fanless cooling system
• SUS 316 / AISI 316 stainless steel enclosure for food and chemical industries
• True flat, easy-to-clean edge-to-edge front surface
• VESA mount support
• Rotary switch to select touch mode (Hand / Rain / Glove)
• Front emergency button and flat buttons for automation control
• Optical bonding (optional)

Certifications

• IP65
• FCC
• CE

Overview
The W10IE3S-SPH2-B is a 10.1-inch IP65 stainless B-Series panel PC designed for hygienic and harsh environments such as food, beverage and chemical industries. The unit features a SUS 316 / AISI 316 stainless housing and a true flat, edge-to-edge front surface suitable for regular cleaning procedures and strict hygiene standards.

Front push-buttons, including a dedicated emergency button, provide direct physical control at the work station for rapid intervention and critical operations. A rotary switch allows quick selection of touch modes (hand, rain, glove) to ensure reliable input under varying conditions.

The display supports projected capacitive (PCAP) multi-touch for gestures such as rotate, drag-and-drop and pinch-to-zoom. Optical bonding is available as an option to improve durability and optical performance. VESA mounting and M12 waterproof connectors enable flexible integration into industrial installations.

Highlights

• Waterproof all-around design with IP65 rating for dust and water resistance
• Stainless B-Series with front push buttons and emergency-stop capability
• High-sensitivity PCAP multi-touch with rotary switch for touch-mode adjustment

Technical specifications

• Display: 10.1 inches, Projected Capacitive Multi-Touch
• Resolution: 1280 x 800
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Active Area: 216.96 x 135.6 mm
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB, 16 GB
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB
• Ethernet controller: 1 x Intel® Ethernet Controller
• Operating System: Windows 11 IoT Enterprise (64-bit) (optional); Windows 11 Pro (64-bit) (optional); Windows 10 IoT Enterprise (64-bit) (optional); Linux Ubuntu 22.04 (optional)
• WLAN: support (optional)
• Bluetooth: support (optional)
• Dimensions: 293 x 250 x 69 mm
• Mounting: VESA mount
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65
• Certification: CE, FCC
• USB Port: 1 x M12 waterproof connector for 1 x USB2.0 & Giga LAN
• Serial Port: 1 x M12 waterproof connector for RS232
• Expansion: CN1 and CN2 for front button control
• Indicator: 1 x LED indicator for power; 1 x LED indicator for storage
• Power Input: 1 x M12 waterproof connector for 12V DC (default); optional 9~36V DC
• Buttons / Control: Rear: 1 x Power, 1 x Reset; Front: 1 x Emergency button & 3 x Flat buttons (via CN1 & CN2 M12 connector); 1 x Rotary switch for touch mode
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB & LAN cable with waterproof connector; external COM cable with waterproof connector; external cables for CN1 & CN2; waterproof caps; RJ45 female-female converter; VESA screws
• Optional Accessory: 1 x Open wire cable for M12 connector
