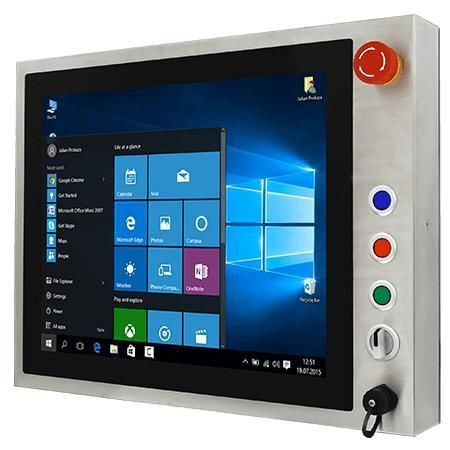

PCAP touchscreen panel PC R15IE3S-SPC3-B

multitouch screen15"Intel® Atom® X6413

Overview
The 15-inch IP65 Stainless B Series Panel PC R15IE3S-SPC3-B is a factory automation control terminal designed for high-hygiene environments such as food, beverage and chemical industries. It features a SUS316 stainless steel housing, true flat edge-to-edge front and physical controls for reliable operation in washdown conditions.

Key Features

• Intel Atom® x6413E (Elkhart Lake) processor
• Fanless cooling design
• SUS 316 / AISI 316 stainless steel enclosure
• Full IP65 waterproof and dustproof front
• Projected capacitive multi-touch screen (PCAP)
• VESA mount support
• Rotary switch for Hand / Rain / Glove touch modes
• Front emergency stop and flat push buttons for direct machine control
• Optical bonding (optional)

Certifications

• IP65
• CE
• FCC

Product Highlights
Waterproof All-Around
IP65 protection enables regular washdowns and meets strict hygiene requirements in food, beverage and pharmaceutical production lines.

Stainless B Series with Push Buttons
Front push buttons provide immediate, precise control at the work area, reducing operator movement and improving response time in critical operations.

Emergency Stop
A dedicated emergency button allows instant shutdown of processes without navigating HMI screens, improving safety and reaction time.

Ultimate Touch Experience
High-sensitivity PCAP multi-touch supports multi-finger gestures (rotate, drag, zoom). The rotary switch enables reliable switching between Hand, Rain and Glove modes for use with gloves or wet conditions.

Technical specifications

• Display: 15.0 inches; Projected Capacitive Multi Touch Screen; Resolution 1024 x 768; Brightness 300 nits; Contrast 2000:1; View Angles 88,88,88,88; Active Area 304.1 x 228.1 mm
• System: Processor Intel Atom® x6413E (up to 3.0 GHz); Memory 4GB default (options 8GB, 16GB); Storage 128GB SSD default (options 256GB, 512GB, 1TB, 2TB); Ethernet controller: Intel® Ethernet Controller; Optional OS: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04; Optional WLAN/BT
• Mechanical: Dimensions 426 x 301 x 69 mm; VESA mount; Stainless housing (SUS 316 / AISI 316); Fanless cooling
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 45°C; Storage temperature -20°C to 60°C; IP rating IP65
• Certifications: CE, FCC, IP65
• IO Ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x front waterproof USB2.0 type-A; 1 x M12 waterproof RS232; 1 x waterproof Giga LAN RJ45; Expansion CN1 & CN2 for front buttons; LED indicators for power and storage; Power input 1 x M12 waterproof 12V DC
• Control: Rear: Power and Reset buttons; Front: 1 x Emergency Button, 3 x Flat Buttons (CN1 & CN2 via M12), 1 x Rotary Switch for touch mode
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN waterproof cables; CN1 & CN2 cables; waterproof caps; RJ45 female-female converter; VESA screws
• Optional: Open wire cable for M12 connector; Power options: M12 Type 12V DC (default) or 9~36V DC (optional)
