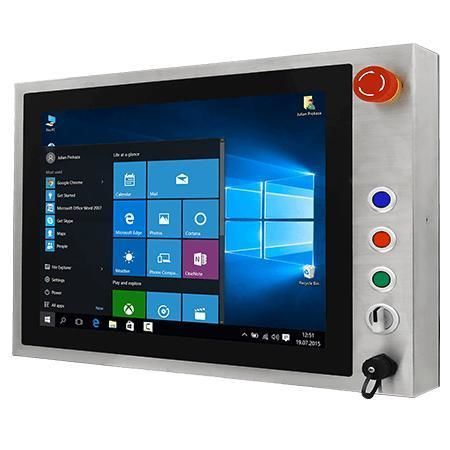

PCAP touchscreen panel PC W22IE3S-SPA3-B

multitouch screen21.5"Intel® Atom x6413E

Overview
The Winmate W22IE3S-SPA3-B is a 21.5" IP65 stainless steel Panel PC engineered for factory automation and hygienic production environments. It pairs a projected capacitive multi-touch display with physical push-buttons, a rotary selector for touch modes (Hand/Rain/Glove) and a prominent emergency stop button. Fully sealed SUS316/AISI316 housing, fanless design and M12 waterproof connectors support frequent washdowns and harsh conditions. Multiple memory, storage and OS configurations are available; optical bonding is optional.

Key features

• Intel Atom® x6413E processor
• Fanless cooling for sealed environments
• SUS316 / AISI316 stainless steel enclosure suited to food, beverage and chemical industries
• Full IP65 protection (front and sealed connectors)
• True-flat edge-to-edge front glass for easy cleaning
• VESA mount support
• Rotary switch to select touch mode: Hand / Rain / Glove
• Emergency stop and programmable flat push-buttons for direct machine control
• Optical bonding available as an option

Certifications

• IP65
• FCC
• CE

Product highlights / Use cases
The Stainless B Series is targeted at environments where hygiene and fast tactile controls matter (food, beverage, pharmaceutical, chemical processing, industrial automation). Physical buttons and the emergency stop reduce reliance on on-screen menus during critical or time-sensitive operations. Available as a Panel PC or monitor-only to match integration needs.

Design & Human-Machine Interaction

• Large programmable mechanical push-buttons for one-touch actions and reduced operator movement
• Large red emergency stop button for immediate process interruption
• Rotary selector to switch capacitive touch behavior between Hand / Rain / Glove
• PCAP multi-touch supports gestures (pinch-zoom, rotate, drag & drop)

Environmental & Integration Benefits
SUS316 stainless housing provides corrosion resistance; full IP65 sealing and M12 waterproof connectors allow regular washdowns and protection from dust and low-pressure water jets. Fanless architecture minimizes maintenance and improves reliability in sealed enclosures.

Technical specifications

• Model: W22IE3S-SPA3-B
• Brand: Winmate
• Display size: 21.5 inches; Resolution: 1920 x 1080; Brightness: 250 nits; Contrast: 3000:1; View angles: 89/89/89/89; Active area: 476.64 x 268.11 mm
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4GB (default); options 8GB / 16GB
• Storage: 128GB SSD (default); options 256GB / 512GB / 1TB / 2TB
• Ethernet: 1 x Intel® Ethernet Controller
• Operating systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit; Linux Ubuntu 22.04
• WLAN / Bluetooth: optional
• Dimensions: 595 x 337 x 69 mm; Mounting: VESA mount
• Enclosure: Stainless Housing (SUS 316 / AISI 316); Cooling: Fanless
• Operating humidity: 10% to 90% RH (non-condensing); Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C
• IP rating: IP65; Certifications: CE, FCC
• USB: 1 x M12 waterproof connector for 2 x USB2.0; 1 x front waterproof USB2.0 type-A
• Serial: 1 x M12 waterproof connector for RS232; LAN: 1 x waterproof Giga LAN RJ45
• Expansion: CN1 and CN2 for front button control; Indicators: power and storage LEDs
• Power input: 1 x M12 waterproof connector for 12V DC (default); optional 9~36V DC
• Controls: Rear: Power and Reset buttons. Front: 1 x Emergency Button, 3 x Flat Buttons (via CN1 & CN2 M12), 1 x Rotary Switch for touch mode
• Included accessories: 100~240V AC to DC adapter with waterproof connector, power cord, external USB/COM/LAN cables with waterproof connectors, CN1 & CN2 cables, waterproof caps, RJ45 female-female converter, VESA screws
• Optional accessory: open wire cable for M12 connector
