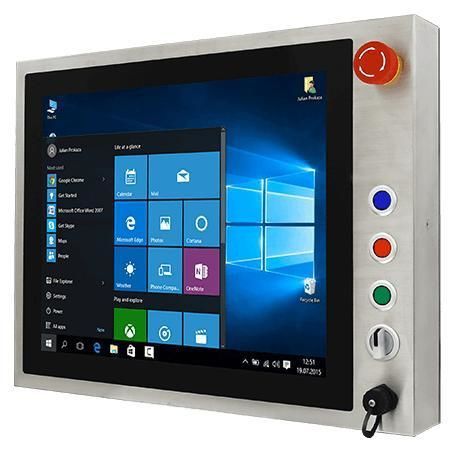

PCAP touchscreen panel PC R19IE3S-SPM1-B

multitouch screen19"Intel® Atom x6413E

Overview
The R19IE3S-SPM1-B is a 19.0-inch IP65 Stainless B Series Panel PC engineered as a factory automation control terminal for applications that require strict hygiene and regular cleaning (Food, Beverage, Pharmaceutical, Chemical). It features a SUS 316 / AISI 316 stainless steel enclosure, true flat edge-to-edge front, fanless cooling and VESA mounting support.

Key features

• Intel Atom® x6413E (Elkhart Lake) processor
• Fanless thermal design
• SUS 316 / AISI 316 stainless housing suitable for corrosive and sanitary environments
• Full IP65 waterproof enclosure (front and body)
• Projected capacitive (PCAP) multi-touch with edge-to-edge flat front
• VESA mount compatible
• Rotary switch to select touch mode: Hand / Rain / Glove
• Front emergency button and flat front buttons for direct machine control
• Optional optical bonding

Certifications

• CE
• FCC
• IP65

Highlights / Applications

• Designed for production lines and hygienic zones where regular washdown is required.
• Physical push-buttons and emergency stop enable immediate actions without navigating HMI screens.
• Fanless architecture reduces maintenance and contamination risk.
• Touch-mode rotary switch provides flexible operation with bare hands, under rain or with gloves.

IO & Control

• Front and rear controls: emergency button, 3 flat front buttons, rotary touch-mode switch, power and reset buttons.
• Waterproof M12 connectors for USB, RS232 and power to maintain ingress protection.
• Waterproof RJ45 Giga LAN connector for network.

Technical specifications

• Display: 19.0 inches, Projected Capacitive Multi Touch, 1280 x 1024, 250 nits, 1000:1 contrast, Active Area 376.32 x 301.06 mm
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB default (options: 8 GB, 16 GB)
• Storage: 128 GB SSD default (options: 256 GB, 512 GB, 1 TB, 2 TB)
• Ethernet: 1 x Intel® Gigabit LAN controller
• OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• WLAN / Bluetooth: optional
• Dimensions: 516 x 395 x 69 mm; VESA mount
• Enclosure: SUS 316 / AISI 316 stainless steel; IP65 (front/enclosure)
• Cooling: Fanless
• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: 0°C to 45°C; Storage: -20°C to 60°C
• USB: 1 x M12 waterproof connector for 2 x USB2.0; 1 x front waterproof USB2.0 Type-A
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45
• Expansion: CN1 and CN2 for front button control
• Indicators: LED for power and LED for storage
• Power input: 1 x M12 waterproof connector for 12V DC (default); optional 9~36V DC
• Accessories included: 100~240V AC to DC adapter with waterproof connector, power cord, external USB/COM/LAN cables with waterproof connectors, CN1 & CN2 cables, waterproof caps, RJ45 female-female converter, VESA screws
• Optional accessory: open wire cable for M12 connector; optical bonding

Accessories & Power

• Standard adapter 100~240V AC to 12V DC with waterproof connector included.
• Optional power input range 9~36V DC available on request.
