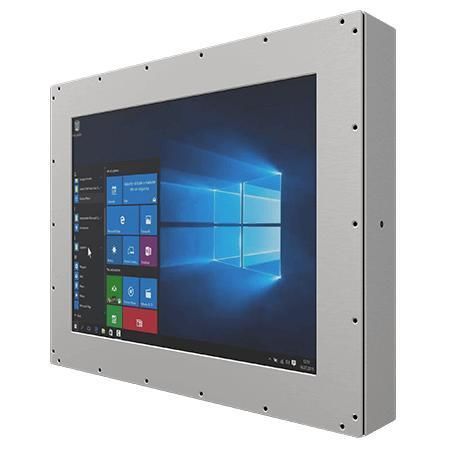

Resistive touch screen panel PC R15IE3S-67C3ST

5-wire resistive touch screen15"Intel® Atom x6413E

Overview
The R15IE3S-67C3ST is a 15-inch fanless Panel PC with an IP67-rated stainless steel resistive chassis, designed for harsh and hygienic industrial environments. It integrates an Intel Atom® x6413E processor, optically bonded display and sealed I/O for reliable operation in wet, dusty or corrosive conditions.

Key features

• Intel Atom® x6413E processor (up to 3.0 GHz)
• Fanless thermal design
• Full IP67 dust and water protection
• SUS 316 / AISI 316 stainless steel enclosure with anti-corrosion treatment
• Optical bonding with anti-moisture treatment
• 5-wire resistive touch (default) or anti-reflection protection glass (optional)

Certifications

• IP67
• CE
• FCC

Product highlights

• Waterproof all-around — IP67 protection ensures resistance to splashes and jets encountered during strict cleaning processes in Food, Beverage and Pharmaceutical production areas.
• Resistive touch or protection glass — Operable with wet fingers and resistant to cold and dusty conditions; protection glass maintains functionality even when surface-scratched.
• Sealed connectors and cable protection — M12 waterproof connectors and sealed RJ45 allow robust installations in harsh industrial settings.

Technical specifications

• Display: 15.0 inches; Resolution 1024 x 768; Brightness 300 nits; Contrast ratio 2000:1; Viewing angles 88/88/88/88; Active area 304.1 x 228.1 mm; Touch: 5-wire resistive bonding (default) / Protection glass without touch (optional).
• System: Intel Atom® x6413E (up to 3.0 GHz); Memory 4GB (default) — 8GB / 16GB optional; Storage 128GB SSD (default) — optional up to 2TB; Ethernet controller: Intel®; Optional OS: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT / Linux Ubuntu 22.04; WLAN/BT optional.
• Mechanical: Dimensions 383 x 310 x 57 mm; Mounting: VESA (default) / Yoke optional; Enclosure: SUS 316 / AISI 316 stainless steel; Cooling: fanless.
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C to 45°C; Storage temp -20°C to 60°C; IP rating IP67.

IO & Controls

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Gigabit RJ45 connector
• Indicators: LED for power and storage
• Buttons: Power and Reset

Accessories

• 100–240V AC to DC adapter with waterproof connector
• Power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws

Power

• Power rating: 12V DC (M12 type)

Model / Brand

• Model: R15IE3S-67C3ST
• Brand: Winmate
