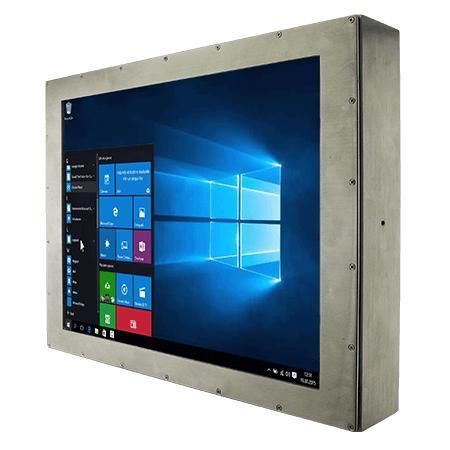

Resistive touch screen panel PC R17IE3S-67M1ST

5-wire resistive touch screen17"Intel® Atom® X6413

Overview
The Winmate R17IE3S-67M1ST is a 17-inch IP67-rated panel PC with a stainless steel housing and resistive touch options. Designed for harsh and hygiene-critical industrial environments, it combines fanless operation, optical bonding and sealed I/O to withstand rigorous cleaning and wet conditions.

Key Features

• 17-inch 1280x1024 resistive touch display
• Intel Atom® x6413E (Elkhart Lake) processor
• Stainless housing with anti-corrosion treatment (SUS 316 / AISI 316)
• Optical bonding with anti-moisture treatment
• 5-wire resistive touch or protection glass (optional)
• Fully sealed M12 and waterproof RJ45 connectors

Certifications

• IP67
• CE
• FCC

Design & Robustness

• Fully sealed connectors and cable protection for installation in demanding industrial environments
• Display and front protection resistive to cold, wet fingers and dust; protection glass preserves functionality even with surface scratches
• Fanless design for reduced maintenance and improved reliability in hygienic applications

Display

• Size: 17.0 inches
• Touch / Glass: Resistive touch screen bonding with panel (default); protection glass without touch function (optional)
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85, 85, 80, 80
• Active area: 337.920 x 270.336 mm

System Specifications

• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4GB (default); 8GB, 16GB (optional)
• Storage: 128GB SSD (default); optional 256GB / 512GB / 1TB / 2TB
• Ethernet controller: 1 x Intel® Ethernet Controller
• Operating systems (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• WLAN / BT: Support (optional)

Mechanical

• Dimensions: 418 x 350 x 59 mm
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: Stainless housing
• Cooling: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP67

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: 1 x LED for power; 1 x LED for storage

Control

• Buttons: 1 x Power Button; 1 x Reset Button

Accessories

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External USB cable with waterproof connector
• External COM cable with waterproof connector
• External LAN cable with waterproof connector
• Waterproof caps; manual; VESA screws

Power

• Power rating: 12V DC (M12 type)

Technical specifications

• Model: R17IE3S-67M1ST
• Brand: Winmate
• Display size / resolution: 17.0 inches, 1280x1024
• Processor: Intel Atom® x6413E (up to 3.0GHz)
• Memory: 4GB (default) — options 8GB, 16GB
• Storage: 128GB SSD (default) — up to 2TB optional
• Dimensions: 418 x 350 x 59 mm
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• IP rating: IP67
• Cooling: Fanless
• Sealed connectors: USB (M12), RS232 (M12), waterproof RJ45
• Certifications: CE, FCC
