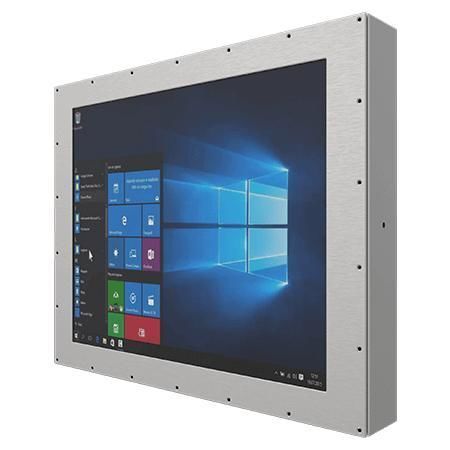

Resistive touch screen panel PC R19IE3S-67M1ST

5-wire resistive touch screen19"Intel® Atom x6413E

Product overview
A 19.0-inch industrial panel PC designed for hygienic and harsh environments. Fully sealed IP67 stainless steel enclosure with fanless cooling and optical bonding for reliable operation under wet, dusty or washdown conditions.

Key features

• Intel Atom® x6413E (Elkhart Lake) processor, up to 3.0 GHz
• IP67 full dust/water protection
• SUS 316 / AISI 316 stainless steel housing
• Fanless design for silent, maintenance-free operation
• Optical bonding with anti‑moisture treatment
• 5‑wire resistive touch (default) or protection glass without touch (optional)

Certifications

• IP67
• CE
• FCC

Applications

• Food & beverage processing HMI
• Pharmaceutical production and clean areas
• Corrosive or washdown industrial lines
• Indoor/outdoor industrial control stations requiring sealed I/O

Display & controls

• Size: 19.0 inches, Resolution: 1280 x 1024
• Panel brightness: 250 nits; Contrast ratio: 1000:1; Viewing angles: 85/85/80/80
• Resistive touch bonding standard; optional anti‑reflection protection glass
• LED indicators for power and storage; power and reset buttons

System & storage

• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB default (upgradeable to 8 GB or 16 GB)
• Storage: 128 GB SSD default; options up to 2 TB
• Optional OS: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04

Connectivity & I/O

• 1 x M12 waterproof connector for 2 x USB2.0
• 1 x M12 waterproof connector for RS232
• 1 x waterproof Gigabit LAN RJ45 connector
• Optional WLAN and Bluetooth support

Mechanical & mounting

• Dimensions: 457.4 x 369.5 x 62.7 mm
• Mounting: VESA mount default; Yoke mount optional
• Enclosure: Stainless housing (SUS 316 / AISI 316)

Environment & protection

• Operating humidity: 10% to 90% RH, non‑condensing
• Operating temperature: 0°C to 45°C; Storage: -20°C to 60°C
• Full IP67 sealing for display, connectors and cables

Accessories & power

• 100~240V AC to DC adapter with waterproof connector; Power cord
• External USB/COM/LAN cables with waterproof connectors; Waterproof caps
• Power rating: 12V DC (M12 type)

Technical specifications

• Model: R19IE3S-67M1ST
• Manufacturer: Winmate
• Display: 19.0 inches, 1280 x 1024, 250 nits
• CPU: Intel Atom® x6413E (up to 3.0 GHz)
• RAM: 4 GB default (8/16 GB optional)
• Storage: 128 GB SSD default (up to 2 TB optional)
• IP rating: IP67
• Housing material: SUS 316 / AISI 316 stainless steel
• Dimensions: 457.4 x 369.5 x 62.7 mm
• Certifications: CE, FCC
