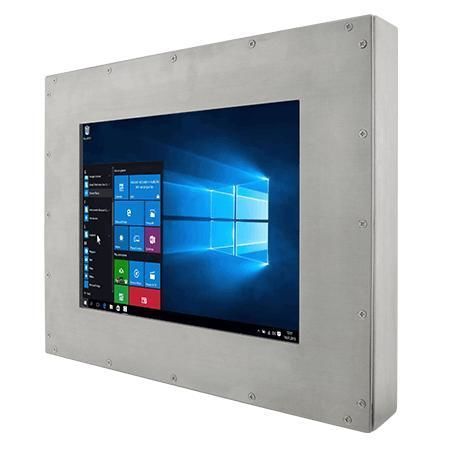

Panel PC with touch screen R10IE3S-67T2ST

resistive touch screen5-wire resistive touch screen10.4"

Product
10.4-inch Intel Atom® x6413E IP67 stainless resistive chassis Panel PC. Fanless design, full IP67 dust/water protection, SUS 316 / AISI 316 stainless housing with anti-corrosion treatment, optical bonding with anti-moisture treatment, 5-wire resistive touch (optional anti-reflection protection glass).

Key Features

• Intel Atom® x6413E Elkhart Lake processor
• Fanless design
• Full IP67 dust and water protection
• Stainless housing with anti-corrosion treatment (SUS 316 / AISI 316)
• Optical bonding with anti-moisture treatment
• 5-wire resistive touch; optional anti-reflection protection glass

Overview

• Waterproof all-around: Display meets IP67 for protection against water and dust to withstand splashing during strict cleaning processes and hygiene requirements in food, beverage and pharmaceutical environments.
• Resistive touch / Anti-reflective protection glass: Reliable operation with cold temperatures, wet fingers and dusty conditions; protective glass shields the panel from sharp foreign objects so the screen remains operable even if scratched.
• Fully sealed connector and cable protection: IP67-rated sealed connectors and cables enable installation in harsh industrial environments.

Certifications

• IP67
• CE
• FCC

Technical specifications

• Display: Size: 10.4 inches; Resolution: 1024 x 768; Panel Brightness: 500 nits; Contrast Ratio: 1000:1; View Angles: 88/88/88/88; Active Area: 210.4 x 157.8 mm; Touch/Glass: 5-wire resistive touch bonded to panel (default); Protection glass without touch (optional).
• System: Processor: Intel Atom® x6413E (up to 3.0 GHz); Memory: 4 GB (default), 8 GB (optional), 16 GB (optional); Storage: 128 GB SSD (default), optional 256 GB / 512 GB / 1 TB / 2 TB SSD; Ethernet controller: 1 x Intel® Ethernet Controller; OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Windows 10 IoT Enterprise 64-bit, Linux Ubuntu 22.04; WLAN: optional; Bluetooth: optional.
• Mechanical: Dimensions: 311 x 257 x 47.4 mm; Mounting: VESA mount (default), Yoke mount (optional); Enclosure: stainless housing; Cooling: fanless design.
• Environment: Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C; IP rating: IP67.
• IO Ports: USB: 1 x M12 waterproof connector for 2 x USB2.0; Serial: 1 x M12 waterproof connector for RS232; LAN: 1 x waterproof Giga LAN RJ45 connector; Indicators: 1 x power LED, 1 x storage LED.
• Control: 1 x Power Button; 1 x Reset Button.
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector; external COM cable with waterproof connector; external LAN cable with waterproof connector; waterproof caps; manual; VESA screws.
• Power: Power rating: 12V DC (M12 type).
