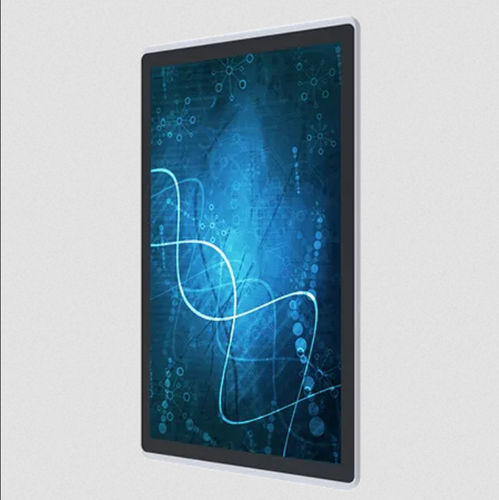

Multitouch screen monitor W15L100-PTA3-ME

projected capacitive touchscreenmedical15.6"

Overview The W15L100-PTA3-ME is a 15.6-inch Full HD medical multi-touch color display designed for hospital workflows, operating rooms, clinical carts and medical device integration. It features projected capacitive (PCAP) multi-touch with glove support, antimicrobial enclosure, a disinfectant-ready flat front bezel and front IP65 protection for infection-controlled environments.

Key features

• 15.6" 1920 x 1080 Full HD display
• Projected Capacitive (PCAP) multi-touch (glove compatible)
• VGA input (standard), HDMI input (optional)
• VESA mount compatibility; lightweight, ergonomic design
• Antimicrobial housing and disinfectant-ready flat front bezel
• Front IP65 protection (water and dust resistant)

Healthcare benefits and use cases

• Designed for patient-side and near-patient use in ORs, ICUs, endoscopy, radiology and clinical review stations
• Flat, easy-to-clean front surface allows frequent disinfection with alcohol- or chlorine-based solutions
• High-resolution panel and wide viewing angles for clear medical image reproduction (diagnostics, endoscopy, fluoroscopy, ultrasound)
• PCAP multi-touch supports multi-finger gestures for intuitive control on mobile carts, bedside terminals and PACS viewers
• Fanless design reduces contamination risk and operating noise in sterile environments

Certifications

• IEC/EN 60601-1; IEC 60601-1-2:2014/AMD:2020; IEC 60601-1-6 + IEC 62366; EN 60601-1-2:2015/A1:2021; EN55032/35; FCC Part15B; ICE-003; ISO 14971; RoHS-2, REACH, WEEE compliant

Accessories included (typical)

• 1 x VGA cable
• 1 x HDMI cable
• 100~240V AC to DC adapter and power cord
• Manual and VESA screws (varies by product)

Technical specifications

• Model: W15L100-PTA3-ME
• Size: 15.6 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (AG)
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 400 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 262K Colors
• Active Area: 344.16 x 193.59 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• USB: 1 x USB for touch (default); 1 x USB Type-C (Alt mode 5V/3A) optional
• Video: 1 x VGA (default); 1 x HDMI (optional)
• Audio: 1 x Audio Line In (default); 2 x Speaker optional
• Dimensions (WxHxD): 388 x 233 x 40 mm
• Weight: 1.6 kg
• Mounting: VESA mount
• Enclosure: Plastic with antimicrobial properties
• Cooling: Fanless design
• Power Rating: 12V DC in (default); USB Type-C Alt mode (5V/3A) optional
• Control Buttons: 7 keys (Enter, Exit, Right, Left, Up, Down, Power)
