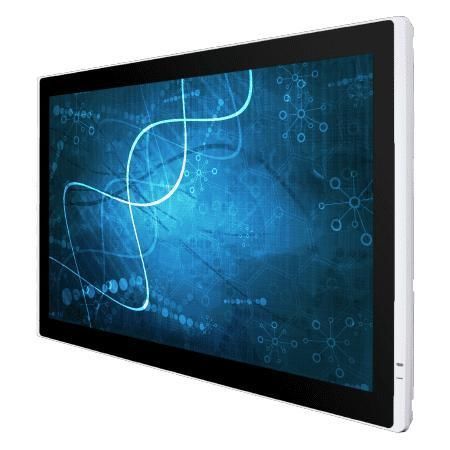

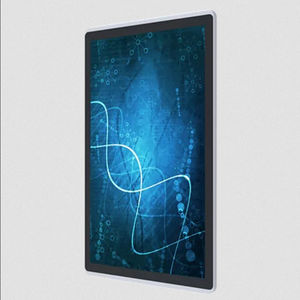

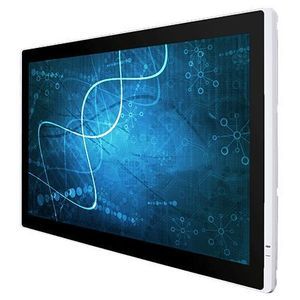

Multitouch screen monitor W32L100-PTA1-SDI

projected capacitive touchscreenIPS LCDmedical

Overview
Winmate W32L100-PTA1-SDI is a 32-inch SDI multi-touch surgical display designed for hospital workflows, clinical carts and medical device integration. It provides native 4K UHD (3840 x 2160) resolution, projected capacitive multi-touch (PCAP) with glove compatibility, a flat disinfectable front, fanless/ventless enclosure, antimicrobial housing and a front IP65 rating for water and dust resistance.

Key Features

• 32" IPS display with native 4K UHD (3840 x 2160)
• Projected Capacitive Multi-Touch (PCAP), glove-compatible
• Five bottom side keys: Power, Esc, Enter, +, -
• Fanless and ventless design; flat, easy-to-clean front
• 12G-SDI input with Loop Out, DisplayPort 1.2 (default); HDMI 1.4 / HDMI 2.0 optional
• Front panel IP65 and antimicrobial surface suitable for hygiene-critical environments

Certifications

• CE
• FCC

Highlights
The unit is medical-grade and complies with international IEC/EN and national medical safety standards for clinical use. The 12G-SDI interface enables high-bandwidth, low-latency uncompressed video and loop-through to duplicate feeds to additional monitors or recorders. Flat antimicrobial materials and disinfectant-ready front panel simplify cleaning in operating rooms, ICUs and other hygiene-critical areas. VESA compatibility and an ergonomic lightweight design support mounting on arms, walls or clinical carts.

Technical Specifications

• Model: W32L100-PTA1-SDI
• Size: 32.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 3840 x 2160 (4K UHD)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 89, 89, 89, 89
• Display Color: 1.07B Colors
• Active Area: 708.48 x 398.52 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• Certification: CE, FCC
• Compliance: IEC 60601-1:2005 + A1:2012 (Ed. 3.1); IEC 60601-1-6:2010 + A1:2013 (Ed. 3.1); IEC 62366:2007 + A1:2014 (Ed. 1.1); ANSI/AAMI ES60601-1:2005/A1:2012 and related amendments; CAN/CSA-C22.2 No.60601-1:14; EN 60601-1-2:2015; EN 55032 / EN 55024; FCC part 15B; EN 62368-1:2014; RoHS-2, REACH, WEEE
• IO Ports: 1 x USB (touch), 1 x RS232 (optional)
• Video Inputs / Outputs: 1 x 12G-SDI In; 1 x 12G-SDI Loop Out; 1 x DisplayPort 1.2 (default); HDMI 1.4 (optional); HDMI 2.0 (optional)
• Audio: 2 x Speaker
• Mechanical Dimensions: 799 x 478 x 63.7 mm
• Weight: 18.5 kg
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless, ventless design
• Power Rating: 24V DC in (AC adapter 110~240V supplied)
• Accessories (included): User Manual (hardcopy); 110~240V AC Power Adapter; Power Cord; DisplayPort Cable; SDI Cable; HDMI Cable; USB Cable for Touch; Remote Controller
• Optional Accessory: RS232 Cable
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
