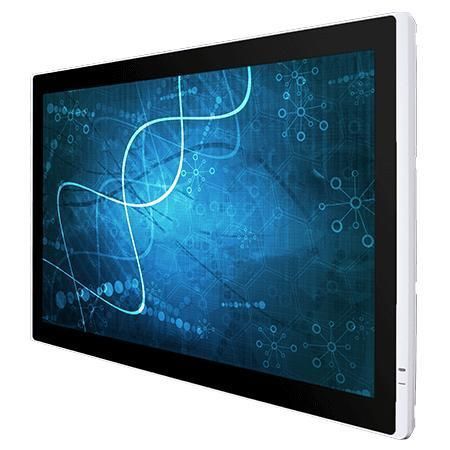

Multitouch screen monitor W32L100-PTA1

projected capacitive touchscreenIPS LCDmedical

Product Overview
The W32L100-PTA1 is a 32-inch multi-touch surgical display designed for hospital workflows, clinical carts and medical equipment integration. It features a native 3840 x 2160 (4K UHD) IPS panel, projected capacitive (PCAP) multi-touch, five front-bottom control keys, fanless and ventless easy-to-clean design, antimicrobial housing and front IP65 protection for use in clinical environments.

Key Features

• 32" multi-touch color surgical display, native 3840 x 2160 (4K UHD)
• Projected Capacitive (PCAP) multi-touch screen with anti-glare (AG) coating
• Five bottom-side physical keys: -, +, Power, Esc, Enter
• Fanless and ventless construction with flat front surface for disinfectant-ready cleaning
• Front IP65 protection and antimicrobial housing
• Multiple signal inputs: VGA, Dual DVI In, DP 1.2 In/Out, VGA, 3G-SDI In/Out; HDMI 1.4/2.0 optional
• IR remote control support

Highlights

• 4K UHD IPS panel delivers high-resolution medical imaging with wide viewing angles and accurate colors for surgical and diagnostic review
• 3G-SDI input with loop-through for uncompressed video transmission and distribution
• PCAP multi-touch supports multi-finger gestures and glove operation for interactive clinical workflows
• Medical-grade hygiene features: flat bezel, antimicrobial coating and disinfectant-compatible construction
• Ergonomic, lightweight design compatible with VESA mounting for carts, arms or wall installation; supports vertical or horizontal orientation

Certifications

• IEC/EN 60601-1
• IEC 60601-1-2:2014/AMD:2020
• IEC 60601-1-6 and IEC 62366
• EN 60601-1-2:2015/A1:2021
• EN55032/EN55035, FCC Part15B, ICE-003
• ISO 14971
• RoHS-2, REACH, WEEE compliant

Intended Applications

• Intraoperative surgical display and endoscopy video monitoring
• Clinical review stations and diagnostic imaging departments
• Patient monitoring at bedside, ICU and high-dependency units
• Telehealth carts, video-enabled consultation rooms and training/education environments

Technical Specifications

• Model: W32L100-PTA1
• Size: 32.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (AG)
• Resolution: 3840 x 2160 (4K UHD)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 89, 89, 89, 89
• Display Color: 1.07B Colors
• Active Area: 708.48 x 398.52 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• USB Port: 1 x USB 2.0
• Serial Port: 1 x RS-232
• Video I/O: 1 x Dual DVI In; 1 x DP 1.2 Out; 1 x DP 1.2 In; 1 x VGA In; 1 x 3G SDI In; 1 x 3G SDI Out (default); HDMI 1.4 (optional); HDMI 2.0 (optional)
• Audio: 1 x Mic In; 1 x Line Out; 2 x Speaker
• GPIO: 1 x RJ-11
• Dimensions: 799 x 478 x 63.7 mm
• Weight: 18.5 kg
• Mounting: VESA mount
• Enclosure: Plastic with antimicrobial properties
• Cooling System: Fanless design
• Power Rating: 24V DC in
• Buttons / Control: 5 Keys: -, +, Power, Esc, Enter
• Accessories included: Remote control; User manual; VESA mounting screws; 24V power supply; Power cable; VGA cable; DVI cable; SDI cable; DC jack to open wire cable; RS232 cable
• Optional accessory: USB cable for touch (optional)
