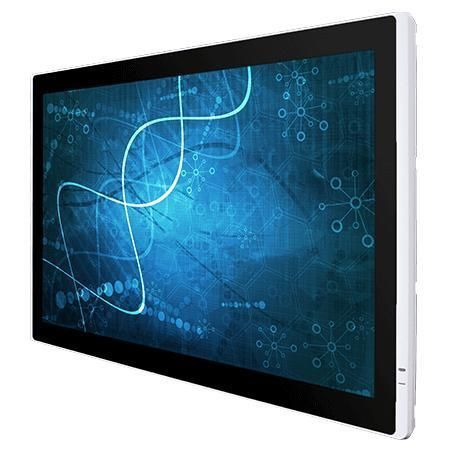

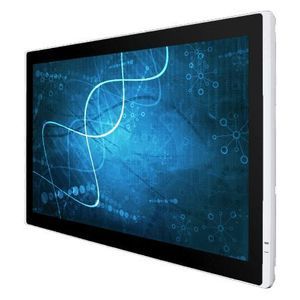

LCD monitor W32L100-PTA3-ME

multitouch screenprojected capacitive touchscreenmedical

Overview
The W32L100-PTA3-ME is a 32" medical-grade multi-touch color display engineered for surgical suites, clinical carts and medical device integration. It combines Full HD image quality, PCAP multi-touch with glove support, a fanless/ventless sealed housing and a front IP65 rating for simplified cleaning and infection-control workflows.

Key Features

• 32" 1920 x 1080 medical touch display
• Projected Capacitive (PCAP) multi-touch with glove operation
• Front IP65 protection and flat, easy-to-clean bezel
• Fanless and ventless design to reduce particle ingress
• Bottom-side control keys: -, +, Power, Esc, Enter
• Video inputs: VGA and HDMI; 1 x USB for touch

Clinical applications
Designed for intraoperative imaging, PACS/EMR review, clinical documentation, telemedicine and integration on clinical carts or medical workstations where reliable touch interaction and hygienic surfaces are required.

Hygiene & Cleaning
Flat front panel and sealed construction enable routine disinfection with medical-grade cleaners. White housing improves visual detection of contaminants and simplifies maintenance in sterile environments.

Connectivity & Integration

• 1 x VGA, 1 x HDMI for video sources
• 1 x USB for touch interface
• Integrated audio: 2 speakers; VESA mounting for system integration

Certifications & compliance

• CE
• FCC
• Meets medical safety and usability standards: IEC 60601 series, IEC 62366, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1

Technical specifications

• Model: W32L100-PTA3-ME
• Size: 32.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (AG)
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 35°C
• Storage Temperature: -20°C to 60°C
• Certification: CE, FCC
• Compliance: IEC 60601-1:2005 + A1:2012; IEC 60601-1-6:2010 + A1:2013; IEC 62366:2007 + A1:2014; ANSI/AAMI ES60601-1; CAN/CSA-C22.2 No.60601-1:14; EN 60601-1-2:2015; EN 55032 / EN 55024; FCC part 15B; EN 62368-1:2014; RoHS-2; REACH; WEEE
• USB Port: 1 x USB for Touch Screen
• Video Inputs: 1 x VGA, 1 x HDMI
• Audio: 2 x Speaker
• Dimension (W x H x D): 799 x 478 x 63.7 mm
• Weight: 18.5 kg
• Mounting: VESA Mount
• Enclosure: Plastic (white housing)
• Cooling System: Fanless Design
• Power Rating: 12V DC in; 24V DC in (optional)
• Accessories Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws; Remote Controller
• Optional Accessory: USB cable for Touch (Optional)
• Control: 5 Keys (-, +, Power, Esc, Enter)
