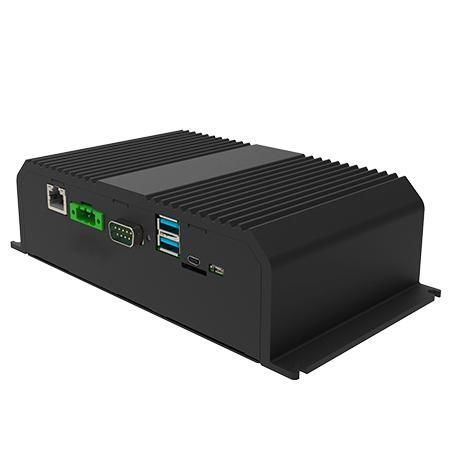

Box PC IM30SB3-101

desktopArm® Cortex®-A53 Quad-coreRS-232

Product Overview
The Winmate IM30SB3-101 is a fanless industrial box PC powered by an ARM Cortex‑A53 quad‑core 2.0 GHz CPU, intended for industrial automation, embedded and mission‑critical edge applications. Its compact metal enclosure and fanless thermal design allow deployment in space‑constrained, poorly ventilated or dust‑prone environments while providing stable onboard computing and long lifecycle availability.

Key Features

• ARM A53 Quad Core 2.0 GHz processor
• 4 GB LPDDR4 memory; 32 GB onboard eMMC storage
• I/O: 1× COM (RS232/422/485 configurable), 2× USB 2.0 Type‑A, 1× Micro USB OTG, 1× RJ45 Gigabit LAN (optional PoE PD), 1× Micro SD slot, 1× Micro HDMI (optional)
• Compact metal housing, desk‑mount form factor
• Fanless cooling for maintenance‑free operation
• Supports Android 11 (default, upgradable) and optional Linux distributions

Detailed Overview
Engineered for edge computing tasks such as data aggregation, filtering and secure edge‑to‑cloud transmission, the IM30SB3‑101 combines energy‑efficient ARM processing with a minimal footprint (205×110×55 mm). The fanless thermal solution reduces moving parts and simplifies integration into cabinets, vehicles or confined workstations.

Integration & Connectivity
The unit offers a broad I/O set to connect sensors, controllers and peripherals: serial interface for legacy equipment, multiple USB ports, expandable storage via Micro SD, cellular connectivity via Micro SIM, and Gigabit Ethernet with optional PoE PD for simplified cabling in industrial deployments. Optional Micro HDMI supports external displays for system monitoring.

Certifications

• CE
• FCC
• MIL‑STD‑810H (shock & vibration noted in documentation)

Technical specifications

• Model: IM30SB3-101
• Brand: Winmate
• Processor: ARM Cortex‑A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• Operating System: Android 11 (default, upgradable to Android 13); optional Linux Yocto 5.10.104 with Qt 5.15; optional Linux Ubuntu
• Dimensions: 205 × 110 × 55 mm
• Weight: 1.1 kg
• Enclosure / Mounting: Metal housing, Desk Mount
• Cooling: Fanless design
• Operating temperature: 0°C to 55°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non‑condensing
• USB: 2 × USB 2.0 Type‑A; 1 × Micro USB 2.0 OTG
• Serial: 1 × RS232/422/485 (configurable)
• LAN: 1 × RJ45 Gigabit (optional PoE PD, 802.3at)
• Video: 1 × Micro HDMI (optional)
• SD slot: 1 × Micro SD (max 32 GB)
• SIM slot: 1 × Micro SIM
• Power input: 1 × 3‑pin terminal block, 12 V DC
• Button: 1 × Power Button
• Accessories: 100~240 V AC to 12 V DC adapter; power cord
• Certifications: CE, FCC; MIL‑STD‑810H (per product documentation)
