Box PC ITMH100

embeddedIntel® Core i5Intel® Core™ i5-1135G7

Overview

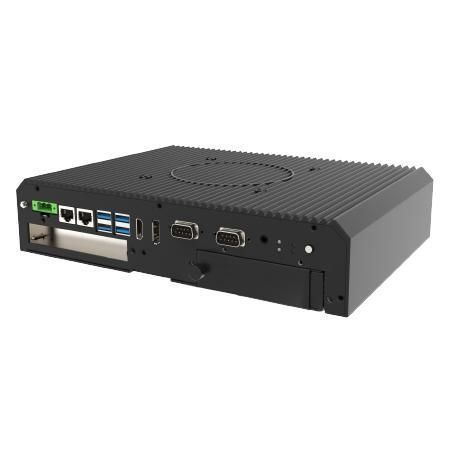

The Winmate ITMH100 is a fanless embedded Box PC based on the 11th Gen Intel® Core™ i5-1135G7 (Tiger Lake UP3). It is engineered for industrial automation, edge AI, machine vision, robotics and other mission-critical embedded applications requiring long lifecycle availability and field serviceability. The modular mechanical design supports conversion to a Panel PC via an optional front display and enables in-field upgrades.

Key features

• Intel® Core™ i5-1135G7 with Intel® Iris® Xe graphics
• Multi video output: DisplayPort 1.4 (default) and optional HDMI 2.0; automatic display detection
• Tool-less, hot-swappable 2.5" drive bays for quick storage replacement
• Wide DC input range: 9–29V via 3-pin terminal block
• Fanless thermal design (heat-sink / heat-pipe) for reliable operation without moving parts
• Optional modular front display for Panel PC integration

Mechanical & Design

• Compact metal housing, VESA-mountable
• Dimensions: 276 x 207 x 60 mm; Weight: 3.0 kg
• Modular chassis for field servicing and module exchange

Power & Input
Supports wide-range DC input 9–29V via 3-pin terminal block with built-in protection fuse. Typical adapter: 12V 84W. Typical power consumption: approximately 45W–55W. Accessory options include AC adapter, power cord and open-wire cable with terminal-block connector.

Certifications

• CE
• FCC

Applications

• Factory automation and SCADA
• Edge AI and machine vision
• Digital signage and multi-display installations
• Vehicle-mounted and mobile industrial deployments

Technical specifications

• Processor: Intel Core i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 2x SO-DIMM (default 4 GB; options 8/16/32 GB)
• Storage: 1 x M.2 2280 NVMe; optional 2 x 2.5" swappable HDD/SSD bays
• Ethernet: Intel® I211-AT + I219-LM (2 x Gigabit LAN)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro (64-bit) optional; Ubuntu 22.04 optional (Wake on Touch not supported)
• USB: 4 x USB 3.2 Gen1 (Type-A)
• Serial: 2 x RS232/422/485 (default RS232)
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Expansion: 1 x mPCIe; 1 x PCIe x16 (x4 signal); 1 x M.2 2230 Key E; 1 x M.2 2280 Key M
• Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C; Operating humidity: 10%–90% RH non-condensing
